Shop BIG JOE

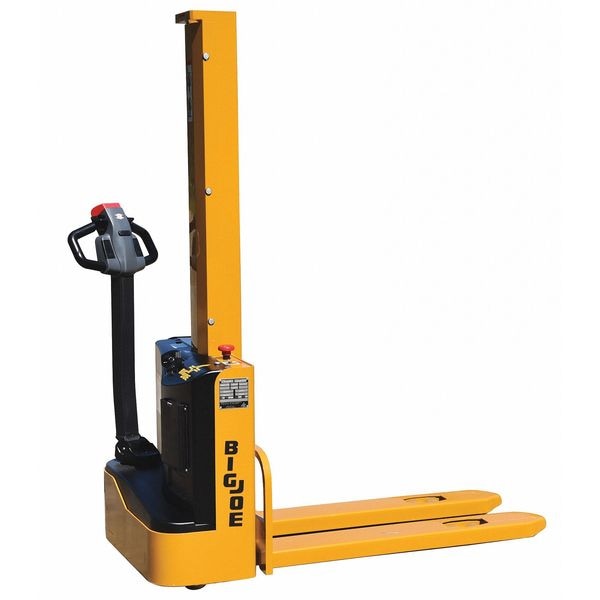

76-1/2" H Stacker, Load Cap. 2200 lb.

  • Mfr # S22-62R
  • Zoro # G1853402
product price:
$
8,440.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Overall Height
76 1/2 in
Overall Length
63 1/2 in
Overall Width
32 in
Color
Black, Yellow
Load Capacity
2,200 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S22-62R
Zoro #
G1853402
UPC #
-
Country of Origin
China

Dimensions

Overall Height
76 1/2 in
Overall Length
63 1/2 in
Overall Width
32 in
Rear Caster Dia.
4 in
Lifting Height Min.
1 in
Front Wheel Dia.
4 in
Fork Width
6 3/4 in
Front Caster Dia.
4 in
Fork Length
45 in
Lifting Height Max.
62 in
Rear Wheel Dia.
8 in
Handle Height
51 in
Overall Height with Forks Raised
77 in
Fork Thickness
2 1/4 in
Axle-Mounted Wheel Width
2 7/8 in
Drive Wheel Width
2 3/4 in
Minimum Lifting Height
1 in
Maximum Lifting Height
62 in
Width Across Forks
21 3/4 in
Turning Radius
4 ft 4 in
Base Outside Width
19 7/8 in
Lifting Height Range
1 in to 5 ft 2 in
Overall Height with Forks Lowered
77 in
Width Between Forks
8 1/4 in
Drive Wheel Diameter
8 1/4 in
Axle-Mounted Wheel Dia.
4 in
Overall LxWxH
63 1/2 in x 32 in x 77 in
Base Inside Width
10 in
Wire Rope Length
63 1/2 in
Length
63 1/2 in

Details

Color
Black, Yellow
Load Capacity
2,200 lb
Item
Walkie Fork-Over Stacker: 2,200 lb Load Capacity
Assembled
Yes
Lift Mechanism
Hydraulic
Base Legs Inside Dim.
10 in
Caster Wheel Type
(2) Polyurethane
Includes
(2) Polycase Batteries and Internal Charger
Invertible Forks
No
Lift Control
Push Button
Lift Voltage
24V DC
Lift Base Style
Fork Over
Frame Material
Steel
Lift Mobility
Electric Lift, Electric Push
Load Center
24 in
Base Legs Outside Dim.
19-29/32 in
Charge Time
4 hr
Power Connection Type
Plug In
Non-Marking Casters/Wheels
No
Base Style
Fixed Forkover
Non-Marking Axle-Mounted Wheels
No
Axle-Mounted Wheel/Tread Material
Polyurethane
Axle-Mounted Wheel Type
Solid
Number of Batteries
1
Fork Type
Fixed
Charger Voltage
110V AC
Run Time
4 hr
Features
High Efficiency Drive Motors, Infinitely Variable Speed Operation For Tight Turning In Close Quarters, Handle With Safety Reversing Switch And Horn, Battery Discharge Indicator
Frame Finish
Powder Coated
Weight
1,125 lb
Battery Amp Hours
85 Ah
Method of Construction
Welded
For Pallet Type
Open
Standards
OSHA
Caster Brake Type
No Caster Brake
Steering Arc
180 Degrees
Battery Voltage
DC
Battery Type
Sealed Lead Acid
Charger Type
On-Board
For Surface Type
Concrete
Operation
Powered
Base Material
Steel
Frame Type
Flat Back
Drive Wheel/Tread Material
Polyurethane
Handle Material
Steel
Base Type
Fixed Forkover

Description

Powered, Base Type Fixed Forkover, Lift Control Push Button, Lift Mechanism Hydraulic, Fork Type Fixed, Load Capacity 2,200 lb, Fork Length 45 in, Fork Width 6 3/4 in, Width Between Forks 8 1/4 in, Width Across Forks 21 3/4 in, Minimum Lifting Height 1 in, Maximum Lifting Height 62 in, Lifting Height Range 1 in to 5 ft 2 in, Overall Length 63 1/2 in, Overall Width 32 in, Overall Height with Forks Lowered 77 in, Overall Height with Forks Raised 77 in, Base Outside Width 19 7/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
