Shop BIG JOE

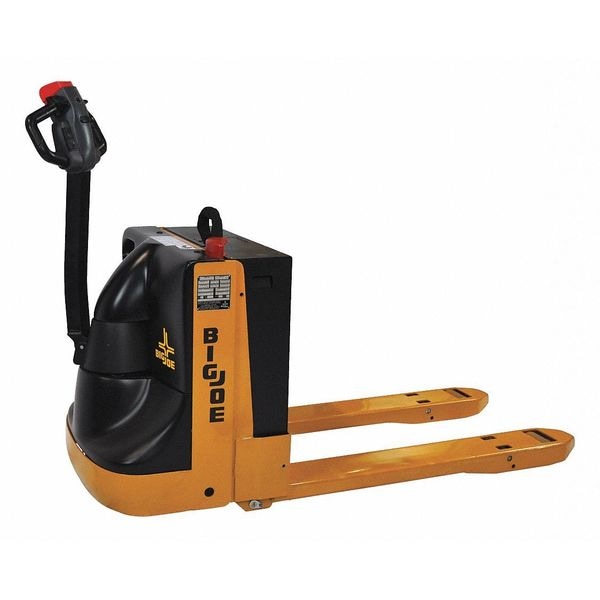

Walkie Pallet Truck - 4,500 lb Electric Pallet Jack (WPT-45-2745-S-BB224AG)

  • Mfr # WPT-45-2745-S-BB224AG
  • Zoro # G1933957
product price:
$
5,903.99
/ea
Additional $345.00 delivery surcharge applies per item.
See details

Key Features

Overall Height
51 in
Overall Length
70-1/2"
Overall Width
27"
Material
Steel
Color
Black, Yellow
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WPT-45-2745-S-BB224AG
Zoro #
G1933957
UPC #
-
Country of Origin
China

Dimensions

Overall Height
51 in
Overall Length
70-1/2"
Overall Width
27"
Wheel Diameter
Drive Tire (1) 9" x 3" x Load Wheel (2) 3.25" x 4.5"
Fork Height Raised
8 13/64 in
Fork Length
46 in
Fork Height Lowered
3 1/4 in
Width Between Forks
14 in
Width Across Forks
27 in
Fork Width
6 in
Roller Dia.
3-1/4"
Back Rest Height
30 in
Handle Height
51 in
Overall LxWxH
70 1/2 in x 27 in x 51 in
Maximum Lifting Height
8 in
Minimum Lifting Height
3 in
Wire Rope Length
71 in
Length
71 in
Fits Chest Size
Key Switch

Details

Material
Steel
Color
Black, Yellow
Load Capacity
4500 lb
Item
Walkie Pallet Truck
Wheel Type
Polyurethane
Handle Type
Ergonomic
Assembled
Yes
Lift Mechanism
Hydraulic
Voltage
24V DC
Features
Electromagnetic Brake; ZAPI Travel Controller; Low Mounted Tiller Arm
Includes
Vertically Mounted Drive Motor; Hydraulic Pump: DC Motor, Solenoid, Gear Pump
Frame Finish
Powder Coated
Frame Material
Steel
Wheel Base
58.40 in
Wheel Material
Polyurethane
Roller Material
Polyurethane
For Pallet Type
Open/Closed
Brake Type
Disc Brake
For Surface Type
Concrete
Fork Type
Fixed
Power Connection Type
Plug-In
Fork Style
Standard
Handle Material
Steel
Number of Batteries
1
Operation
Electric
Charger Type
On-Board
Charger Voltage
110V AC
Battery Voltage
24V
Battery Type
Absorbed Glass Mat (AGM) Maintenance Free
Travel Speed
3.4 mph
Battery Amp Hours
224 Ah
Charge Time
7 hr
Adjustment Type
Powered Lift and Lower Control
Wire Color
Black, Yellow

Description

The BIG JOE WPT-45-2745-S-BB224AG Walkie Pallet Truck is an electric-powered pallet jack with a 4,500 lb load capacity. It operates on a 24V DC system with an onboard 110V AC charger and features a hydraulic lift mechanism. The truck is constructed with a steel frame and polyurethane wheels, providing durability and smooth movement on concrete surfaces. It includes a ZAPI travel controller, electromagnetic braking system, and low-mounted tiller arm for improved handling.

Key Features:

  • Load Capacity: 4,500 lb
  • Operation Type: Electric-powered with 24V DC system
  • Lift Mechanism: Hydraulic, 3-1/4 in to 8-1/4 in lift range
  • Frame Material: Steel with powder-coated finish
  • Fork Dimensions: 45-1/2 in L × 6-3/4 in W × 3-1/4 in H (lowered)
  • Width Across Forks: 27 in; width between forks 13.5 in
  • Brake Type: Electromagnetic disc brake
  • Controller Type: ZAPI travel controller
  • Drive Motor: Vertically mounted motor with DC solenoid hydraulic pump
  • Wheel Material: Polyurethane; drive wheel 9 in, load wheels 3.25 in × 4.5 in
  • Handle Type: Ergonomic steel handle, 51 in height
  • Charger: 110V AC onboard charger included
  • Overall Dimensions: 70-1/2 in L × 27 in W × 51 in H; wheelbase 58.4 in
