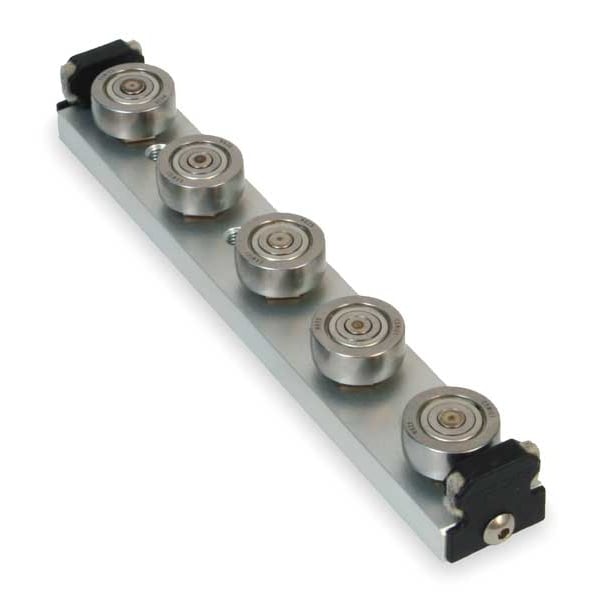

Carriage Assembly, 27.7 x 38 x 224.2 mm

BISHOP-WISECARVER| Zoro #: G1491131| Mfr #: UT2WPAR-5A

$376.68 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1491131 Mfr #: UT2WPAR-5A
Carriage Material: AluminumCarriage Finish: Clear Anodized
Temp. Range (C): -55 to 100Item: Linear Guide Carriage Assembly
Type: SW SeriesDimension O: -
Dimension S2: -Slide Length (In.): -
Carriage Height: 27.7mmDimension B2: -
Dimension L2: -Dimension S1: -
Slide Width (In.): -Max. Load Radial: 1416 Lbf.
Dimension B1: -Dimension L1: -
Dimension L3: -Slide Height (In.): -
Max. Speed (m/Sec): 5.5Carriage Hole Size (In.): -
Temp. Range (F): -Dimension J1: -
Max. Speed (In/Sec): -Carriage Hole Size (mm): M8 x 1.25
Dimension F: -Static Load Capacity (Lb.): -
Dimension G2: -Dimension N: -
Roller Type: Crown RollerMax. Pv: -
Includes: -Dimension F3: -
Dimension M1: -Carriage Type: Crown Roller
Seals: -Dynamic Load Capacity (Lb.): -
Dimension F2: -Dimension L: -
Slide Hole Size (mm): 14.3 x 3Agency Compliance: -
Static Load Capacity (N): -Dimension J: -
Slide Width (mm): 40Dimension B: -
Roller Finish: GroundDynamic Load Capacity (N): -
Dimension G1: -Slide Height (mm): 34.7 to 37.4
Dimension X: -Carriage Length: 224.2mm
Slide Hole Size (In.): -Dimension G: -
Roller Material: 52100 SteelDimension P: -
Dimension S3: -Slide Length (mm): -
Carriage Width: 38mmDimension F1: -
Size: 2Country of Origin (subject to change): United States

Product Description

Linear Guide Carriage Assembly, SW Series, Carriage Height 27.7 mm, Carriage Width 38 mm, Carriage Length 224.2 mm, Carriage Hole Size M8 x 1.25 mm, Slide Height 34.7 to 37.4 mm, Slide Width 40 mm, Slide Hole Size 14.3 x 3 mm, Max Load Radial 1416 Lb, Max Speed 5.5 m/Sec, Temp Range -55 to 100 C, Crown Roller Carriage Type, Aluminum Carriage Material, Clear Anodized Carriage Finish, Crown Roller Roller Type, 52100 Steel Roller Material, Ground Roller Finish, For Use With SW Series Open Channel
