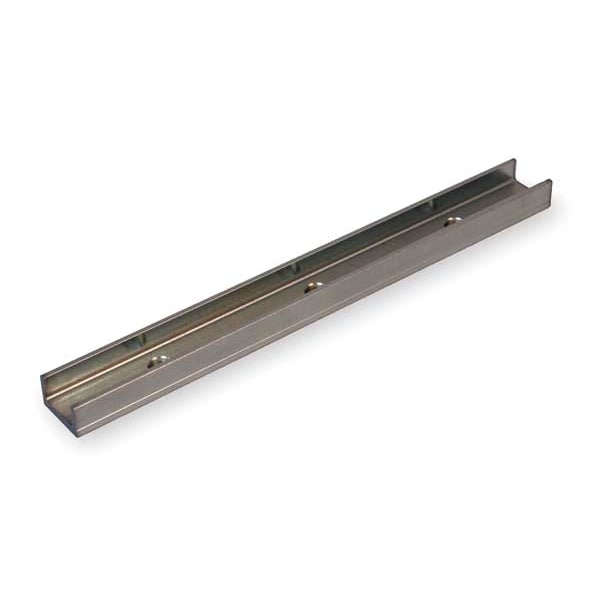

Linear Guide, 720mm L, 58 mm W, 30.0 mm H

BISHOP-WISECARVER| Zoro #: G2114366| Mfr #: UTTRS3G0720

$418.62 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2114366 Mfr #: UTTRS3G0720
Mounting Hole from Shaft End: 40 mmRaceway: Hardened
Type: SW SeriesRail Finish: Ground
Rail Material: Alloy SteelItem: Linear Guide
Mounting Hole Center to Center: 80 mmTemp. Range: -55 to 100 C
Size: 3Number of Rail Holes: 9
Mounting Hole Size: 8.8 mmThread Size: M8
Dimension P: -Dimension F3: -
Dimension B2: -Dimension O: -
Dimension F2: -Dimension B1: -
Dimension L2: -Dimension F: -
Dimension L1: -Screw Type: -
Dimension Y1/Y2: -Dimension N: -
Agency Compliance: -Dimension S3: -
Temp. Range (F): -Dimension M1: -
Overall Width: 58mmDimension S2: -
Dimension L: -Overall Length: 720mm
Dimension S1: -Includes: -
Dimension J: -Overall Height: 30.0mm
Dimension L3: -Dimension G1: -
Dimension B: -Dimension J1: -
Dimension G: -Dimension X: -
Dimension G2: -Dimension F1: -
Country of Origin (subject to change): United States

Product Description

Linear Guide, SW Series, Size 3, Overall Length 720 mm, Overall Width 58 mm, Overall Height 30.0 mm, Number of Rail Holes 9, Mounting Hole from Shaft End 40 mm, Mounting Hole Center to Center 80 mm, Mounting Hole Size 8.8 mm, Temp Range -55 to 100 C, Alloy Steel Rail Material, Ground Rail Finish, Hardened Raceway, For Use With SW Carriage Assembly
