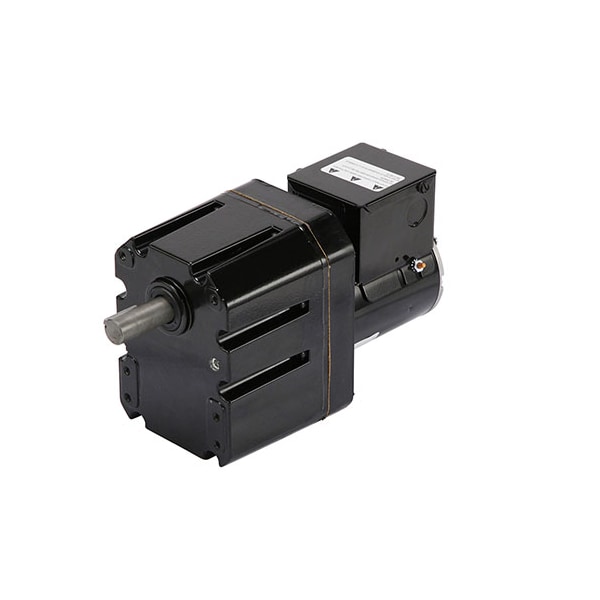

AC Gearmotor, 1.2RPM, 115/230V
Mfr # 016-656-1412
Zoro # G9652995
product price: $908.99
/ea
Free Shipping & Returns
Key Features
Length Less Shaft
9.34 in
Standards
RoHS Compliant
Shaft Orientation
Parallel
Gear Material
Steel (Balance Spur)
Lubrication
Oil
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
016-656-1412
Zoro #
G9652995
UPC #
-
Country of Origin
United States
Dimensions
Length Less Shaft
9.34 in
Overall Length
11.34 in
Overall Height
6.22 in
Overall Width
4.78 in
Output Shaft Diameter
3/4 in
Keyway Width
3/16 in
Output Connection Depth
2 in
Keyway Depth
3/16 in
Keyway Length
1 1/8 in
Description
AC Gearmotor, Motor Type Permanent Split Capacitor, Maximum Torque 710 in-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Gear Ratio 1427.3:1, Shaft Orientation Parallel, Output Shaft Type Keyed, Includes Capacitor Capacitor Included, Motor Insulation Class B, Includes Junction/Conduit Box Yes, Vent Type None, Motor Duty Class Continuous, AGMA Gear Class Class 9
