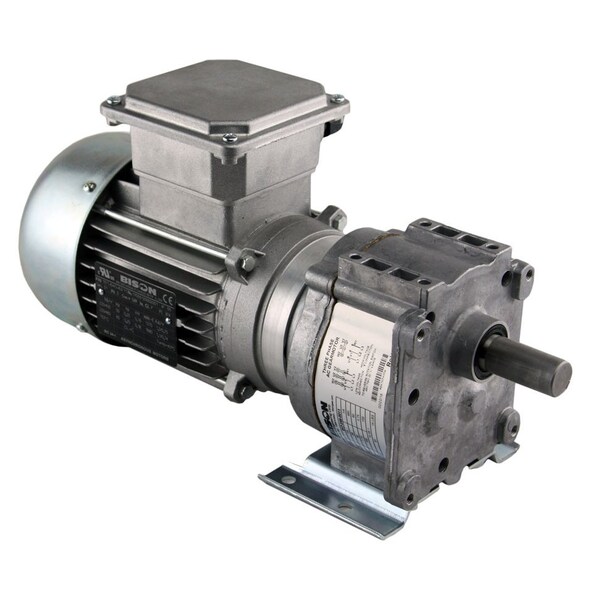

AC Gearmotor, 16.4RPM, 230/460V
Mfr # 017-246-0102
Zoro # G9652548
product price: $839.99
/ea
Free Shipping & Returns
Key Features
Length Less Shaft
11.18 in
Standards
RoHS Compliant
Gear Type
Spur
Rotation
CW/CCW
Overall Length
13.18 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
017-246-0102
Zoro #
G9652548
UPC #
-
Country of Origin
United States
Dimensions
Length Less Shaft
11.18 in
Overall Length
13.18 in
Output Shaft Diameter
3/4 in
Keyway Depth
3/16 in
Mount Hole Center-to-Center Length
4 in
Keyway Width
19/100 in
Keyway Length
1 in
Housing Mount Hole Size
0.28 in
Mount Hole Center-to-Center Width
1.5 in
Output Connection Depth
2 in
Output Shaft Length
1 9/16 in
Description
AC Gearmotor, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Maximum Torque 385 in-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 230/460V AC, Gear Ratio 102.4:1, Shaft Orientation Parallel, Output Shaft Type Keyed, Motor Insulation Class F, Includes Junction/Conduit Box Yes, Motor Duty Class Continuous, AGMA Gear Class Class 9
