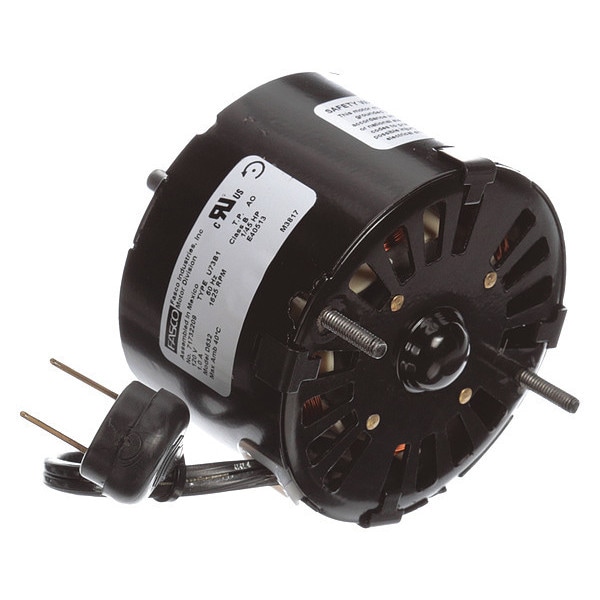

Motor, 1/45 HP, OEM Replacement Brand: Broan Replacement For: 99080345
Mfr # D632
Zoro # G4333905
product price:Â
$
69.99
/ea
Key Features
Frame
3.3
HP
1/45 HP
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- D632
- Zoro #
- G4333905
- UPC #
- 818508021072
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 1/4"
- Shaft Length
- 1.41"
- Length Less Shaft
- 2 3/16 in
- Bolt Circle Dia.
- 2-13/16"
- Body Dia.
- 3.3"
- Manufacturers Warranty Length
- 1 yr
- Overall Length
- 3.87"
- Stud Size
- #8-32
- Mounting Stud Thread Size
- #8-32
- Shaft Diameter
- 1/4 in
- Frame Size
- 3.3
- Wire Rope Length
- 3 7/8 in
- Body Diameter
- 3.4 in
- Bolt Circle Diameter
- 2 13/16 in
- Length
- 3 7/8 in
Description
Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/45 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1 A, 3.3 Frame, OEM Replacement Brand Broan, Replacement For 99080345, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
