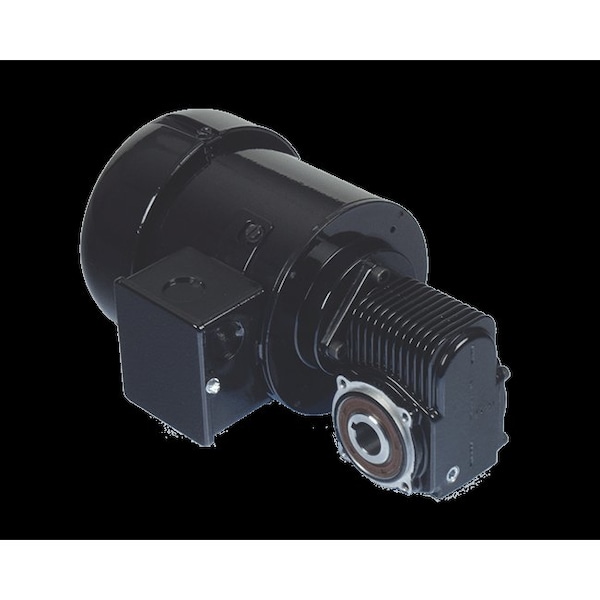

AC Gearmotor, 80RPM, 230V
Mfr # 027-756-4420
Zoro # G9653220
product price: $909.99
/ea
Free Shipping & Returns
Key Features
Standards
RoHS Compliant
Shaft Orientation
Right Angle
Phase
Three
Gear Ratio
20.5:1
Overall Length
10.1 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
027-756-4420
Zoro #
G9653220
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
10.1 in
Overall Height
5.8 in
Keyway Depth
3/16 in
Output Shaft Diameter
3/4 in
Keyway Width
3/16 in
Details
Item
AC Gearmotor
Standards
RoHS Compliant
Shaft Orientation
Right Angle
Phase
Three
Gear Ratio
20.5:1
Lubrication
Oil
Input Horsepower
0.25 hp
IP Rating
IP44
Full Load Current
0.8 A
Motor Duty Class
Continuous
Number of Stages
1
Maximum Output Speed
120 RPM
Keyway Type
Square
Operating Voltage
230V AC
Maximum Torque
108 in-lb
Motor Frame Designation
42 NEMA
Motor Enclosure
Totally Enclosed Fan-Cooled
Output Shaft Type
Keyed
Description
AC Gearmotor, Motor Enclosure Totally Enclosed Fan-Cooled, Maximum Torque 108 in-lb, Operating Voltage 230V AC, Gear Ratio 20.5:1, Shaft Orientation Right Angle, Output Shaft Type Keyed, Motor Duty Class Continuous
