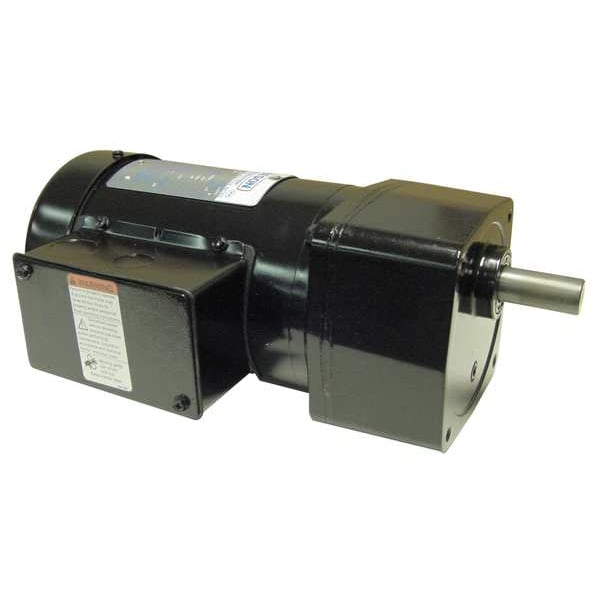

AC Gearmotor, 341 in-lb Max. Torque, 9 RPM Nameplate RPM, 208-230/460V AC Voltage, 3 Phase

  • Mfr # 096065.00

  • Zoro # G0735375

product price:
$
704.00
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
208-230/460V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
341 in-lb
Gearmotor Shaft Type
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
096065.00
Zoro #
G0735375
UPC #
691720346457
Country of Origin
United States

Dimensions

Length Less Shaft
11.45 in
Keyway Size Type
0.18 sq in x 1 in
Dimension N
2 in
Dimension C
13.07 in
Dimension X
3.32 in
Dimension AA
0.88 in
Height (Dimension O)
5.16 in
Shaft Dia. (Dimension U)
3/4 in
Dimension U
3/4 in
Shaft Length (Dimension V)
1.63 in
Dimension S
0.187 in
Keyway Size
0.18" Square x 1"
Dimension AB
4.25 in
Overall Length
13.07 in
Output Shaft Length
1 5/8 in
Overall Height
4.97 in
Output Shaft Diameter
3/4 in
Overall Width
4.29 in
Wire Rope Length
13.07 in
Length
13.07 in

Details

Item
AC Gearmotor
Gearmotor Voltage
208-230/460V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
341 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
9 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
1.0/0.5 A
Standards
CE Y, CSA Y, UL
Input HP
1/6 hp
Motor Type
3-Phase
Bearings
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Gear Type
AGMA Class 9
Housing
Rolled Steel
Mounting
All Position Except Shaft Up
Overhung Load
327 lb
Hz
60 Hz
RPM Range
0 to 15
Seals
Heavy Duty, Single Lip, Spring Loaded
Insulation Class
F4
Gear Ratio
180:1
Enclosure
TEFC
Lubrication
Permanent Heavy Duty Gear Oil
Rotation
CW/CCW
Finish
Black High Gloss Enamel
Gears
AGMA Class 9, Precision Machined and Hardened
Shaft Orientation
Parallel
Phase
Three
Application
Inverter Duty
Gear Case Material
Die Cast Aluminum
Max. Ambient Temp.
40 Degrees C
Gear Material
Precision Machined and Hardened
No Load RPM
10 RPM
Voltage
208-230/460
Thermal Protection
None
Service Factor
1
Housing Material
Rolled Steel
Motor Frame Designation
42Y
Inverter Rating
180:1
Motor Enclosure
Totally Enclosed Fan-Cooled
Mount Type
Horizontal or Vertical Shaft Down
Maximum Ambient Temperature
104 Degrees F
Number of Output Shafts
1
Motor Insulation Class
F
Maximum Output Speed
9 RPM
Brake Type
None
Frequency
60 Hz
Housing Material Finish
Black High Gloss Enamel
Input Horsepower
0.167 hp
Motor Duty Class
Continuous
Seal Type
Spring Loaded
Mounting Orientation
Horizontal, Vertical with Shaft Down
Operating Voltage
208-230/460V AC
Nameplate Speed
9 RPM
Inverter Rated
Yes
Bearing Type
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
No Load Speed
10 RPM
Full Load Current
1/0.5 A
AGMA Gear Class
Class 9
Maximum Torque
341 in-lb
Overhung Load Capacity
327 lb
Keyway Type
0.18 sq in x 1 in

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 9 RPM, Maximum Torque 341 in-lb, Overhung Load Capacity 327 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230/460V AC, Inverter Rated Yes, Gear Ratio 180:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class F, Motor Duty Class Continuous, AGMA Gear Class Class 9, Application Inverter Duty
