  11. DC Gearmotor, 12VDC, 180 rpm, 1/8 HP, 10:1

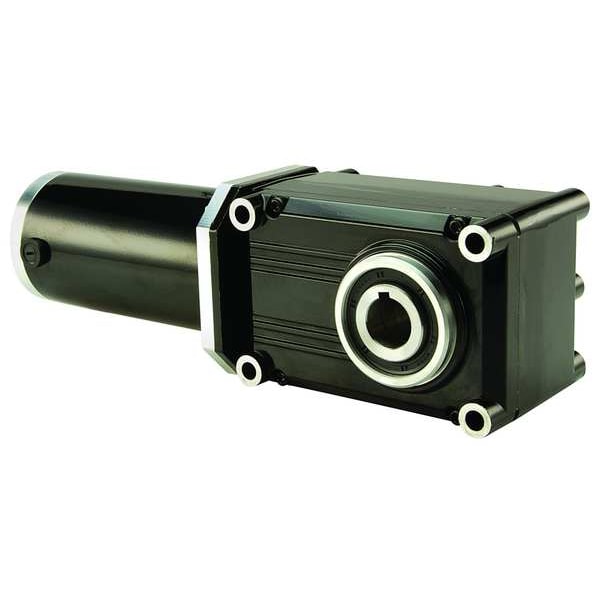

Bison Gear & Engineering DC Gearmotor, 12VDC, 180 rpm, 1/8 HP, 10:1 021-720A0010 - main

DC Gearmotor, 12VDC, 180 rpm, 1/8 HP, 10:1

  • Mfr # 021-720A0010

  • Zoro # G0071825

product price: $960.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Type
DC Gearmotor
Shaft Orientation
Right Angle
Enclosure
TENV
Voltage
12VDC
Motor Type
Gearmotor DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
021-720A0010
Zoro #
G0071825
UPC #
845171008260
Country of Origin
United States

Dimensions

Overall Length
13.57 in
Shaft Dia. (Dimension U)
3/4"
Output Shaft Diameter
3/4 in

Details

Gearmotor Type
DC Gearmotor
Shaft Orientation
Right Angle
Enclosure
TENV
Voltage
12VDC
Motor Type
Gearmotor DC
Nameplate RPM
180 RPM
Max. Torque
35 in-lb
Overhung Load
270 lb
Rotation
CW/CCW
Mounting
All Position
Gear Ratio
10:1
Input HP
1/8
Bearings
Ball
Full Load Amps
11.6 A
Gear Material
Steel
Lubrication
Semi-Fluid Grease
Seals
Lip Type
Standards
CuRus
Gearmotor Voltage
12V DC
Thermal Protection
None
RPM Range
151 to 200
Gearmotor Rotation
CW/CCW
Brushes
Externally Replaceable
Reversible Shaft Output
Yes
Max. Ambient Temp.
40 Degrees C
Finish
Powdered Coat
Rear Shaft Encoder/Pulse Generator Mounting
No
Gear Case
Die Cast Aluminum
Gear Type
Hypoid
Gearmotor Shaft Orientation
Right Angle
Housing Material
Steel
Item
Dc Gearmotor
Shaft
Hollow Output
Insulation Class
F
Gearmotor Mounting Position
All Angle
No Load RPM
180 RPM
Application
Agriculture, Conveyors, Food and Beverage Equipment, Industrial Machinery, Packaging
Gearmotor Shaft Type
Hollow
Gearmotor Enclosure
Totally Enclosed Nonventilated
Full Load Current
12 A
Housing Material Finish
Powder Coated
Nameplate Speed
180 RPM
Seal Type
Lip Type
Maximum Torque
35 in-lb
Motor Enclosure
Totally Enclosed Nonventilated
Mounting Orientation
Any Angle
Input Horsepower
1/8 hp
Overhung Load Capacity
270 lb
No Load Speed
180 RPM
IP Rating
IP50
Maximum Ambient Temperature
40 Degrees C
Operating Voltage
12V DC
Bearing Type
Ball

Description

DC Gearmotor, Shaft Orientation Right Angle, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 12V DC, Motor Type Gearmotor DC, Nameplate Speed 180 RPM, Maximum Torque 35 in-lb, Overhung Load Capacity 270 lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 10:1, Input Horsepower 1/8 hp, Application Agriculture, Conveyors, Food and Beverage Equipment, Industrial Machinery, Packaging, Output Shaft Diameter 3/4 in, Bearing Type Ball
