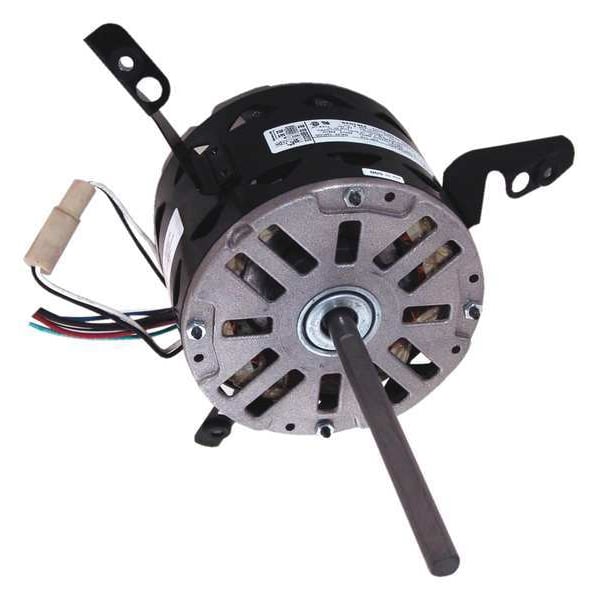

Motor, PSC, 1/4 HP, 1075,208-230V, 48Y, OAO

  • Mfr # FM1026
  • Zoro # G1499863
product price:
$
199.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Air-Over
Motor Mounting Position
Horizontal
Phase
Single
Hz
60 Hz
No. of Speeds
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FM1026
Zoro #
G1499863
UPC #
-
Country of Origin
India

Dimensions

Shaft Dia.
1/2 in
Shaft Length
6 in
Body Dia.
5 5/8 in
Length Less Shaft
4 1/8 in
Lead Length
26 in
Overall Length
10 1/8 in
Shaft Diameter
1/2 in
Frame Size
48Y
Body Diameter
5.6 in
Wire Rope Length
10 1/8 in
Length
10 1/8 in

Details

Motor Enclosure Design
Open Air-Over
Motor Mounting Position
Horizontal
Phase
Single
Hz
60 Hz
No. of Speeds
3
Motor Thermal Protection
Auto
Capacitor Required
Capacitor Not Included
Motor Sub Application
Room Air Conditioner
Motor Service Factor
1
Voltage
208V AC to 230V AC
RPM Range
1,001-1,100
Standards
CSA Certified, UL Recognized
Full Load Amps
1.06 A
Motor Shaft Design
Flat
HP
1/4
Motor Shaft Rotation
CW/CCW
Motor Application
HVAC/R
Nameplate RPM
1,075
Max. Ambient Temp.
50 Degrees C
Motor Design
Permanent Split Capacitor
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Motor Mounting Type
T-Flex
Application
Room Air Conditioner
Ins. Class
B
Item
Room Air Conditioner Motor
Motor Bearings
Ball
Duty
Continuous
Frame
48Y
Usable @ 208V
Usable at 208V
Number of Shafts
1
Stud Quantity
4
Usable @ 200V
Not Usable at 200V
Weight
12 lb
Mounting Holes
4
Motor Frame Material
Steel
Mounting
Torsion Flex Bracket
Number of Speeds
3
Sub Application
General Purpose
Motor Enclosure Type
Open Air Over
Mounting Position
Horizontal
Frame Material
Steel
Ambient Temperature - Maximum
50 Degrees C
Full Load Current @ 60 Hz
1.06 A
Shaft Design
Flat
Drive Type
Direct Drive
Product Type
Room Air Conditioner Motor
Insulation Class
B
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Wattage
190 W

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 1.06 A Full Load Amps, 48Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type T-Flex
