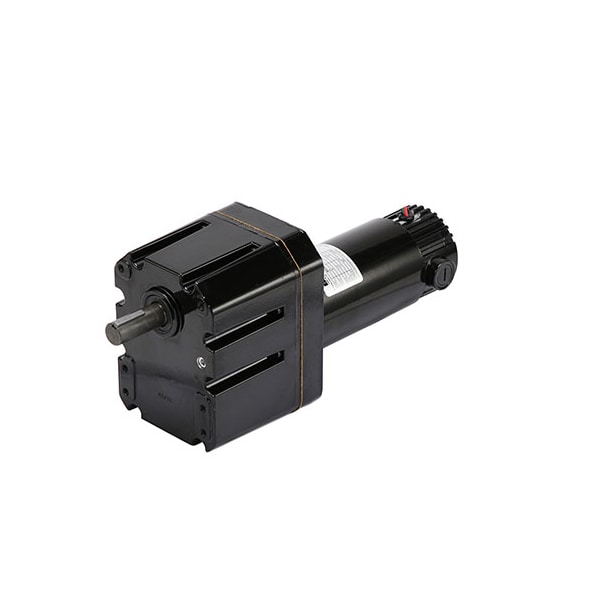

DC Gearmotor, 13RPM, 90V
Mfr # 011-656-0138
Zoro # G9651665
product price:Â
$
1,000.99
/ea
Free Shipping & Returns
Key Features
Shaft Orientation
Parallel
Motor Type
Permanent Magnet DC
Rotation
CW/CCW
Gear Ratio
138.1:1
Gear Material
Hardened Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 011-656-0138
- Zoro #
- G9651665
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Length Less Shaft
- 12.43 in
- Overall Length
- 14.43 in
- Overall Height
- 6.22 in
- Overall Width
- 4.78 in
- Output Shaft Diameter
- 3/4 in
- Mount Hole Center-to-Center Width
- 6 in
- Mount Hole Center-to-Center Length
- 4 in
- Output Connection Depth
- 2 in
- Keyway Length
- 1 1/8 in
- Keyway Depth
- 3/16 in
- Keyway Width
- 3/16 in
- Housing Mount Hole Size
- 0.33 in
- Wire Rope Length
- 14.43 in
- Length
- 14.43 in
Description
DC Gearmotor,13RPM,90V, Shaft Orientation Parallel, Output Shaft Type Keyed, Motor Enclosure Totally Enclosed Fan-Cooled, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Maximum Torque 660 in-lb, Overhung Load Capacity 900 lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 138.1:1, Input Horsepower 1/6 hp, AGMA Gear Class Class 9, Output Connection Depth 2 in, Output Shaft Diameter 3/4 in, Bearing Type Needle and Thrust Ball, Color Black
