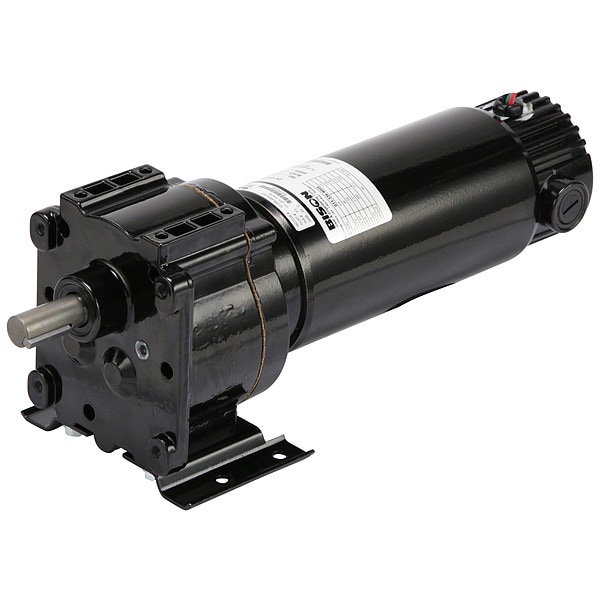

DC Gearmotor, 42RPM, 90V
- Mfr # 011-348-4040
- Zoro # G9651306
product price:Â
$
964.99
/ea
Free Shipping & Returns
Key Features
Motor Type
Permanent Magnet DC
Gear Ratio
42.9:1
Length Less Shaft
12.26 in
Lubrication
Oil
Standards
RoHS Compliant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 011-348-4040
- Zoro #
- G9651306
- UPC #
- -
- Country of Origin
- United States
- Motor Type
- Permanent Magnet DC
- Gear Ratio
- 42.9:1
- Lubrication
- Oil
- Standards
- RoHS Compliant
- Item
- DC Gearmotor,42RPM,90V
- Keyway Type
- Square
- Maximum Torque
- 300 in-lb
- IP Rating
- IP43
- Number of Stages
- 3
- Full Load Current
- 2.3 A
- Overhung Load Capacity
- 350 lb
- Operating Voltage
- 90V DC
- Input Horsepower
- 1/4 hp
- Number of Housing Mount Holes
- 4
- Output Shaft Type
- Keyed
- Motor Duty Class
- Continuous
- Maximum Output Speed
- 61 RPM @ 130 V
Dimensions
- Length Less Shaft
- 12.26 in
- Overall Length
- 14.26 in
- Overall Width
- 4 in
- Overall Height
- 6.02 in
- Housing Mount Hole Size
- 0.28 in
- Output Shaft Diameter
- 3/4 in
- Output Connection Depth
- 2 in
- Keyway Width
- 3/16 in
- Mount Hole Center-to-Center Length
- 4 in
- Keyway Length
- 1 in
- Mount Hole Center-to-Center Width
- 1.5 in
- Keyway Depth
- 3/16 in
- Wire Rope Length
- 14.26 in
- Length
- 14.26 in
Description
DC Gearmotor,42RPM,90V, Output Shaft Type Keyed, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Maximum Torque 300 in-lb, Overhung Load Capacity 350 lb, Gear Ratio 42.9:1, Input Horsepower 1/4 hp, Output Connection Depth 2 in, Output Shaft Diameter 3/4 in
