Shop BISON GEAR & ENGINEERING

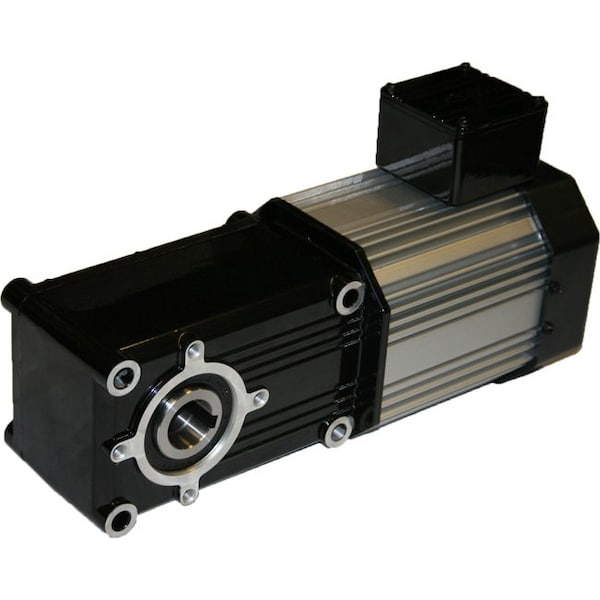

Powerstar AC Gearmotor, 14RPM, 230/460V

  • Mfr # 027-730K0120

  • Zoro # G9653695

product price:
$
1,354.99
/ea
Free Shipping & Returns

Key Features

Standards
CE
Application
Light Industrial, Light to Medium Conveying
Gear Ratio
120:1
Overall Length
16.09 in
Rotation
CW/CCW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
027-730K0120
Zoro #
G9653695
UPC #
-
Country of Origin
United States
Item
AC Gearmotor
Standards
CE
Application
Light Industrial, Light to Medium Conveying
Gear Ratio
120:1
Rotation
CW/CCW
Shaft Orientation
Right Angle
Lubrication
Semi-Fluid Grease
Motor Type
3-Phase
Phase
Three
Housing Material
Aluminum
Features
Higher Torque Capability, Quieter Operation, Unmatched Energy Efficiency, Upto 4X more Efficient than Traditional Technology Right Angle Gearmotors
IP Rating
IP54
Housing Material Finish
Clear Coated
Motor Duty Class
Continuous
Frequency
90 Hz
Motor Enclosure
Totally Enclosed Fan-Cooled
Mounting Orientation
Any Angle
Number of Stages
3
Input Horsepower
0.25 hp
Maximum Output Speed
14 RPM
Operating Voltage
230/460V AC
Maximum Torque
871 in-lb
Full Load Current
1.25/0.92 A
Output Shaft Type
Round
Overhung Load Capacity
965 lb
Number of Output Shafts
1
Brake Type
None
Nameplate Speed
14 RPM
Inverter Rated
Yes
Output Location
Reversible

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 14 RPM, Maximum Torque 871 in-lb, Overhung Load Capacity 965 lb, Rotation CW/CCW, Output Shaft Height 2.28 in, Mounting Orientation Any Angle, Operating Voltage 230/460V AC, Inverter Rated Yes, Gear Ratio 120:1, Brake Type None, Output Location Reversible, Shaft Orientation Right Angle, Output Shaft Type Round, Motor Duty Class Continuous
