  11. Powerstar AC Gearmotor, 40RPM, 230/460V

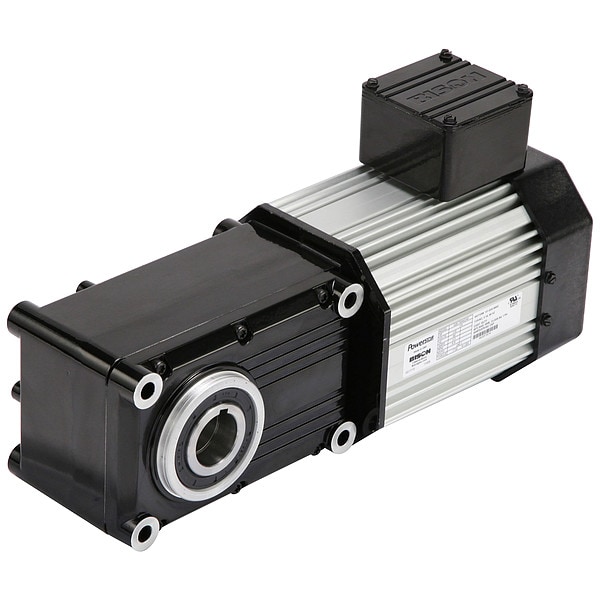

Bison Gear & Engineering Powerstar AC Gearmotor, 40RPM, 230/460V 027-730K0040T - main

Powerstar AC Gearmotor, 40RPM, 230/460V

  • Mfr # 027-730K0040T

  • Zoro # G9653659

product price: $1,414.99
/ea
Free Shipping & Returns

Key Features

Shaft Orientation
Right Angle
Application
Light Industrial, Light to Medium Conveying
Overall Length
13.6 in
Phase
Three
Rotation
CW/CCW
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
027-730K0040T
Zoro #
G9653659
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
13.6 in
Output Face Bolt Circle Diameter
3.74 in
Overall Width
5.86 in
Overall Height
7.74 in
Keyway Width
1/4 in
Output Shaft Diameter
1 1/4 in

Details

Item
AC Gearmotor
Shaft Orientation
Right Angle
Application
Light Industrial, Light to Medium Conveying
Phase
Three
Rotation
CW/CCW
Lubrication
Semi-Fluid Grease
Gear Ratio
40:1
Housing Material
Aluminum
Maximum Output Speed
40 RPM
Input Horsepower
0.5 hp
Number of Stages
2
Operating Voltage
230/460V AC
IP Rating
IP40
Maximum Ambient Temperature
104 Degrees F
Frequency
90 Hz
Full Load Current
1.94/0.96 A @ 230V AC, 60 Hz
Housing Material Finish
Clear Coated
Motor Duty Class
Continuous
Features
Higher Torque Capability, Quieter Operation, Unmatched Energy Efficiency, Upto 4X more Efficient than Traditional Technology Right Angle Gearmotors
Mounting Orientation
Any Angle
Maximum Torque
655 in-lb
Motor Insulation Class
B
Motor Enclosure
Totally Enclosed Fan-Cooled

Description

AC Gearmotor, Motor Enclosure Totally Enclosed Fan-Cooled, Maximum Torque 655 in-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 230/460V AC, Gear Ratio 40:1, Shaft Orientation Right Angle, Motor Insulation Class B, Motor Duty Class Continuous, Application Light Industrial, Light to Medium Conveying
