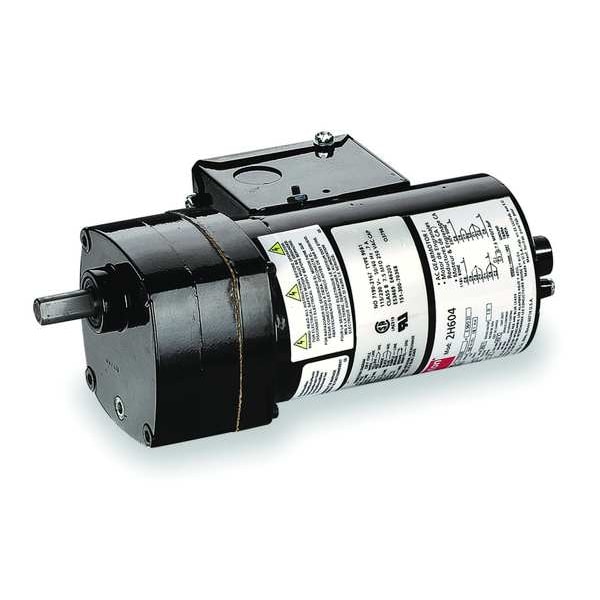

Dayton AC Gearmotor, 160 in-lb Max. Torque, 4.6 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase 2H604 - main

AC Gearmotor, 160 in-lb Max. Torque, 4.6 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

  • Mfr # 2H604

  • Zoro # G0259892

product price:  $668.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
160 in-lb
Gearmotor Shaft Type
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2H604
Zoro #
G0259892
UPC #
190735219416
Country of Origin
United States

Dimensions

Length Less Shaft
7.5 in
Shaft Dia. (Dimension U)
1/2 in
Shaft Length (Dimension V)
1"
Overall Width
3.63 in
Overall Height
3.63 in
Output Shaft Length
1 in
Keyway Depth
3/4 in
Output Shaft Diameter
1/2 in
Mount Hole Center-to-Center Length
2.63 in
Keyway Width
1/8 in
Mount Hole Center-to-Center Width
2.63 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
160 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
4.6 RPM
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
0.38/0.22
Standards
C-UL Recognized, CE Certified, UL Recognized
Input HP
1/20 hp
RPM Range
0 to 15
Motor Type
Permanent Split Capacitor
Rotation
CW/CCW
Overhung Load
115 lb
Lubrication
Permanent Heavy Fluid Gear Oil
Housing
Die Cast Aluminum
Mounting
All Position
Gears
1st Stage Helical, Hardened Steel, Subsequent Stages Spur
Gear Type
Helical (1st Stage), Spur (Subsequent Stages)
Voltage
115/230
Brake
Adaptable to 5X400
Phase
Single
Seals
Spring Loaded Lip Type on Input and Output Shaft
Shaft Orientation
Parallel
Hz
60/50 Hz
Gear Ratio
362:1
Gear Material
Hardened Steel
Thermal Protection
None
Bearings
Ball on Motor, Needle Throughout
Max. Ambient Temp.
40 Degrees C
Gear Case Material
Die Cast Aluminum
Enclosure
TENV
Housing Material
Die Cast Aluminum
Overhung Load Capacity
115 lb
Inverter Rated
No
Seal Type
Spring Loaded Lip Type on Input and Output Shaft
Input Horsepower
0.05 hp
Operating Voltage
115/230V AC
Mount Type
Any Position
Motor Enclosure
Totally Enclosed Nonventilated
Number of Output Shafts
1
Brake Type
None
Full Load Current
0.38/0.22 A
Maximum Ambient Temperature
104 Degrees F
Nameplate Speed
4.6 RPM
Inverter Rating
362:1
Bearing Type
Ball on Motor, Needle Throughout
Maximum Torque
160 in-lb
Mounting Orientation
Any Angle
Frequency
50 Hz, 60 Hz
Includes Capacitor
Capacitor Included

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 4.6 RPM, Maximum Torque 160 in-lb, Overhung Load Capacity 115 lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 362:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included
