  11. Powerstar AC Gearmotor, 53RPM, 230/460V

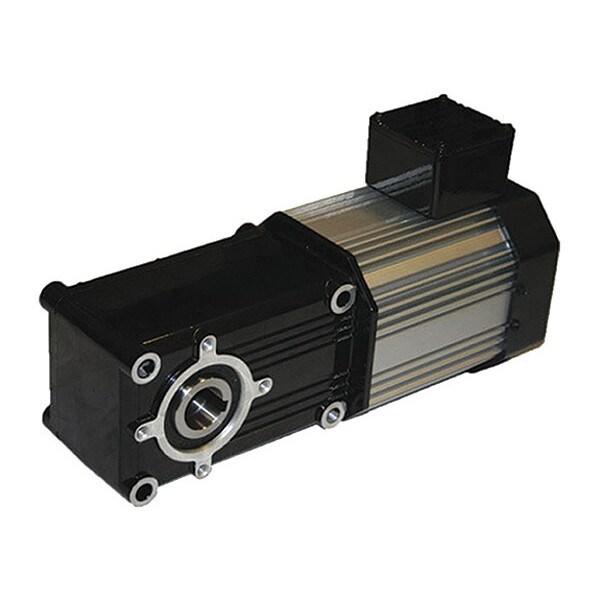

Bison Gear & Engineering Powerstar AC Gearmotor, 53RPM, 230/460V 027-730K0030T - main

Powerstar AC Gearmotor, 53RPM, 230/460V

  • Mfr # 027-730K0030T

  • Zoro # G9653747

product price: $1,364.99
/ea
Free Shipping & Returns

Key Features

Overall Length
13.6 in
Rotation
CW/CCW
Lubrication
Semi-Fluid Grease
Gear Ratio
30.1:1
Phase
Three
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
027-730K0030T
Zoro #
G9653747
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
13.6 in
Overall Height
7.74 in
Keyway Width
1/4 in
Overall Width
5.86 in
Output Shaft Diameter
1 1/4 in
Output Face Bolt Circle Diameter
3.74 in

Details

Item
AC Gearmotor
Rotation
CW/CCW
Lubrication
Semi-Fluid Grease
Gear Ratio
30.1:1
Phase
Three
Shaft Orientation
Right Angle
Application
Light Industrial, Light to Medium Conveying
Housing Material
Aluminum
Motor Duty Class
Continuous
Maximum Output Speed
53 RPM
Frequency
90 Hz
Features
Higher Torque Capability, Quieter Operation, Unmatched Energy Efficiency, Upto 4X more Efficient than Traditional Technology Right Angle Gearmotors
Mounting Orientation
Any Angle
Number of Stages
2
Housing Material Finish
Clear Coated
Operating Voltage
230/460V AC
Full Load Current
1.94/0.97 A @ 230V AC, 60 Hz
Maximum Ambient Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Fan-Cooled
IP Rating
IP40
Motor Insulation Class
B
Maximum Torque
487 in-lb
Input Horsepower
0.5 hp

Description

AC Gearmotor, Motor Enclosure Totally Enclosed Fan-Cooled, Maximum Torque 487 in-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 230/460V AC, Gear Ratio 30.1:1, Shaft Orientation Right Angle, Motor Insulation Class B, Motor Duty Class Continuous, Application Light Industrial, Light to Medium Conveying
