Shop FASCO

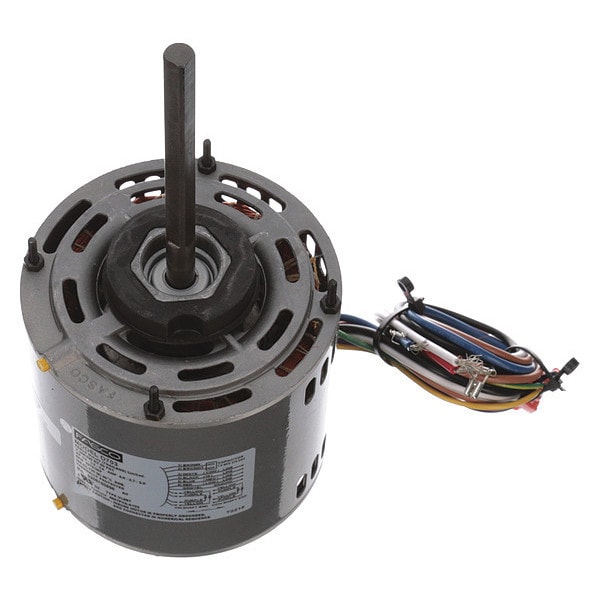

Direct Drive Blower Motor, 1/2 HP

  • Mfr # D703

  • Zoro # G6422757

product price:  $162.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1,075
Motor Mounting Position
All Angle
Mounting Stud Length
9/16 in
Full Load Amps
4.0-2.7-2.0 A
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D703
Zoro #
G6422757
UPC #
818508021218
Country of Origin
Thailand

Dimensions

Mounting Stud Length
9/16 in
Shaft Length
6 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
4 5/8 in
Bolt Circle Dia.
5 1/4 in
Body Dia.
5 5/8 in
Manufacturers Warranty Length
1 yr
Overall Length
11 5/8 in
Lead Length
26 in
Mounting Stud Thread Size
#8-32
Resilient Ring Diameter
2 1/2 in
Bolt Circle Diameter
5 1/4 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Frame Size
48
Wire Rope Length
11 5/8 in

Details

Nameplate RPM
1,075
Item
Fan and Blower Motor
Motor Mounting Position
All Angle
Full Load Amps
4.0-2.7-2.0 A
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Phase
Single
Motor Enclosure Design
Open Dripproof
HP
1/2, 1/3, 1/4
Motor Design
Permanent Split Capacitor
Frame
48
Duty
Continuous
Nominal Efficiency
0.59 %
Mounting Stud Pattern
3-11/16 in x 3-11/16 in
Voltage
208-230V AC
Mounting Stud Location
4/Shaft End
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Capacitor Required
Capacitor Not Included
Motor Thermal Protection
Auto
RPM Range
1,001-1,100
Motor Mounting Type
Ring/Stud
No. of Speeds
3
Motor Bearings
Sleeve
Motor Application
HVAC/R
Ring to Ring Center
5 13/16 in
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Double-Flat
Hz
60 Hz
Weight
17 lb
Usable @ 200V
Not Usable at 200V
Number of Shafts
1
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Motor Frame Material
Steel
Insulation Class
B
Mounting Position
All Angle
Sub Application
General Purpose
Bearing Type
Sleeve
Nameplate Service Factor @ 60 Hz
1
Application
Fan/Blower
Shaft Design
Double Flat
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
4.0-2.7-2.0 A
Manufacturers Warranty
1 yr
Drive Type
Belt Drive
Number of Speeds
3
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Fan and Blower Motor
Frequency
60 Hz
Wattage
370 W
Motor Enclosure Type
Open Drip Proof

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp, 1/3 hp, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 4.0-2.7-2.0 A Full Load Amps, 48 Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof
