Shop B&K PRECISION

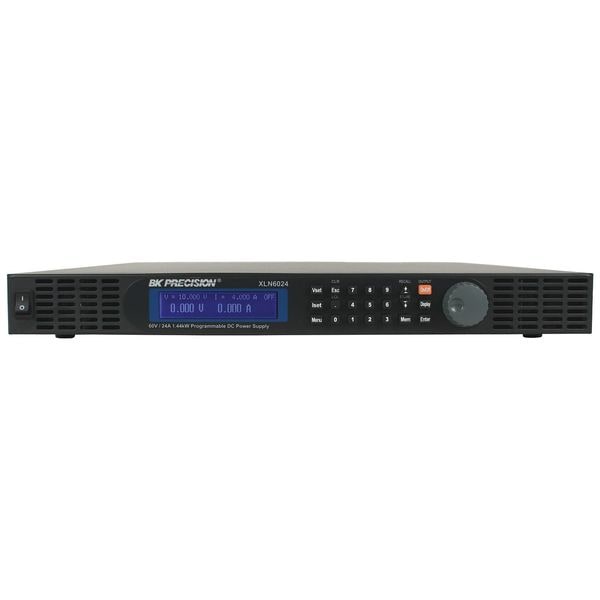

DC Power Supply, 100/240V AC, 60V DC, 1440W, 24A

  • Mfr # XLN6024

  • Zoro # G7995181

product price:
$
2,779.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
100/240V AC
Output Voltage - Nominal
60V DC
Output Power - Rated
1440W
Current - Output
24 A
Power Supply Style
Programmable
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XLN6024
Zoro #
G7995181
UPC #
817050920024
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
1.72 in
Overall Width
16.5 in
Overall Depth
17 in
Manufacturers Warranty Length
3 yr
Depth
17 in
Width
16-1/2 in
Height
1.72 in

Details

Item
DC Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
60V DC
Output Power - Rated
1440W
Current - Output
24 A
Power Supply Style
Programmable
Includes
AC Power Cord, Rackmount Kit, Terminal Blocks
Calibration Certificate
yes
Display
VFD
Line Volts Regulation
Less Than or Equal To 6mV
Line Regulation
Less Than or Equal To 4 mA
Meter Type
Digital
Connection
RS485, USB
Current Limits
0% to 100%
Load Regulation
Less Than or Equal To 8 mV
Protection
OCP, OPP and Key-Lock Function, OVP
Ripple Volts Regulation
Less Than or Equal To 6 mVrms/ Less Than or Equal To 70 mVpp
Output Amps
24A
Hz
47 to 63 Hz
Output Voltage
60V DC
Power Rating
1440W
Style
Programmable
Standards
EN 61010-1:2001, EU Low Voltage Directive 2006/95/EC
Load Regulation Current
7 mA
Line Regulation Voltage
6mV
Number of Display Digits
4
Calibration Certificate Type
NIST
Load Regulation Voltage
8 mV
Current Output - Minimum
0 A
Interface
RS-485, USB
Line Regulation Current
4 mA
Ripple Voltage Regulation
6 mVrms, 70 mVpp
Current Output - Maximum
24 A
Input Voltage - Minimum
100 V AC
Voltage Output - Maximum
60 V
Power Output - Maximum
1,440 W
Digital Display Screen Type
VFD
Input Voltage - Maximum
240 V AC
Voltage Output - Minimum
0 V
Power Output - Minimum
0 W

Description

DC Power Supply, Output Volts (DC) 0 to 60V, Output Current (Amps) 0 to 24 A, Current Limits 0 Percent to 100 Percent, Ripple Volts Regulation Less Than or Equal To 6 mVrms/ Less Than or Equal To 70 mVpp, Line Volts Regulation Less Than or Equal To 6mV, Load Regulation Less Than or Equal To 8 mV, Line Regulation Less Than or Equal To 4 mA, Meter Type Digital, 100-240 V AC Input Voltage, Input Frequency (Hz) 47 to 63 Hz, OCP, OPP and Key-Lock Function, OVP Protection, RS485, USB Connection
