  11. DC Power Supply, 100/240V AC, 12V DC, 30 W, 2.5 A, DIN Rail

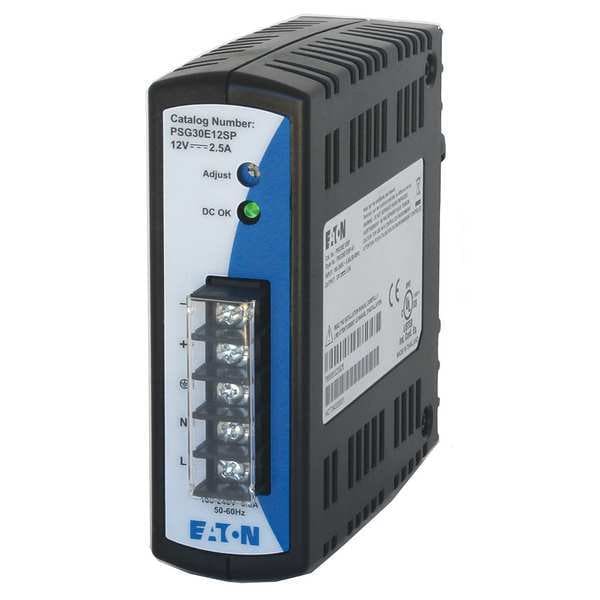

Eaton DC Power Supply, 100/240V AC, 12V DC, 30 W, 2.5 A, DIN Rail PSG30E12SP - main

DC Power Supply, 100/240V AC, 12V DC, 30 W, 2.5 A, DIN Rail

  • Mfr # PSG30E12SP

  • Zoro # G8569407

product price: $91.00
/ea
Free Shipping & Returns

Key Features

Input Voltage
100/240V AC
Output Voltage - Nominal
12V DC
Output Power - Rated
30 W
Current - Output
2.5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSG30E12SP
Zoro #
G8569407
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Height
1.26 in
Overall Width
3.98 in
Overall Depth
4.76 in
Width
1.26 in
Height
3.98 in
Depth
4.76 in

Details

Item
DC Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
12V DC
Output Power - Rated
30 W
Current - Output
2.5 A
Mounting
DIN Rail
Housing Material
Plastic
Phase
Single
Power Supply Style
Switching
Status Indicator
LED/DC OK Signal
Style
Switching
Phase - Electrical
Single
Case Material
Plastic Case
Output Amps
2.50A
Features
Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint
Operating Temp. Range
-20 to 80°C
Hz
50/60 Hz
Output Voltage
12V DC
Output Noise
Less Than 50mV
Hold Up Time
Greater Than 22 msec
IP Rating
IP20
Series
PSG
Power Rating
30W
Standards
CE, CSA, cUL, cULus/UL 60950-1, EN, German Safety, IEC, RoHS, UL 508
Peak Amps
3.75
Connection
Screw
Terminals
Heavy-duty screw
Compliances
CE Marked;German Safety
Certifications
cUL Certified;cULus/UL 60950-1;EN Listed;UL 508;IEC Rated;CSA Certified
Special Features
Varistor Transient Surge Voltage
Wire Connection Type
Screw Terminals
Current - Peak
3.75 A
Manufacturer Warranty
1 yr Installation, 18 mo Shipment
NEMA Enclosure Rating
1
Operating Temperature - Maximum
167 Degrees F
Operating Temperature - Minimum
-4 Degrees F
Input Frequency - Nominal
50/60 Hz

Description

DC Power Supply, Input Voltage 100 to 240V AC, Output Voltage 12V DC, Power Rating 30W, Output Amps 2.50, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 3.98 in, Width 1.26 in, Depth 4.76 in, Series PSG, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 3.75, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 22 msec, Status Indicator LED/DC OK Signal, NEMA Rating 1
