Shop B&K PRECISION

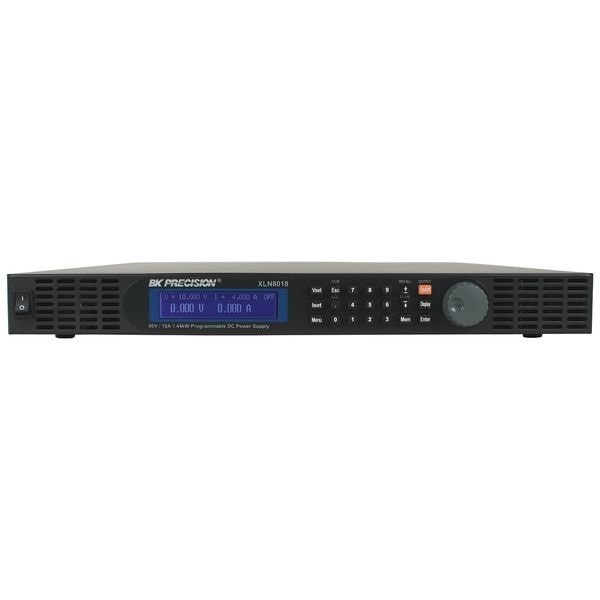

DC Power Supply, 100/240V AC, 80V DC, 1440W, 18A

  • Mfr # XLN8018-GL

  • Zoro # G8472046

product price:
$
3,159.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
100/240V AC
Output Voltage - Nominal
80V DC
Output Power - Rated
1440W
Current - Output
18 A
Power Supply Style
Programmable
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
XLN8018-GL
Zoro #
G8472046
UPC #
817050920079
Country of Origin
Taiwan, Province of China
Item
DC Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
80V DC
Output Power - Rated
1440W
Current - Output
18 A
Power Supply Style
Programmable
Current Limits
0% to 100%
Display
VFD
Protection
OCP, OPP and Key-Lock Function, OVP
Line Regulation
Less Than or Equal To 4 mA
Connection
GPIB, LAN, RS485, USB
Line Volts Regulation
Less Than or Equal To 8mV
Calibration Certificate
yes
Includes
AC Power Cord, Rackmount Kit, Terminal Blocks
Ripple Volts Regulation
Less Than or Equal To 7 mVrms/ Less Than or Equal To 80 mVpp
Meter Type
Digital
Load Regulation
Less Than or Equal To 10 mV
Hz
47 to 63 Hz
Standards
EN 61010-1:2001, EU Low Voltage Directive 2006/95/EC
Output Voltage
80V DC
Output Amps
18A
Power Rating
1440W
Style
Programmable
Load Regulation Voltage
10 mV
Interface
Ethernet, GPIB, RS-485, USB
Line Regulation Current
4 mA
Current Output - Maximum
18 A
Ripple Voltage Regulation
7 mVrms, 80 mVpp
Line Regulation Voltage
8mV
Calibration Certificate Type
NIST
Current Output - Minimum
0 A
Load Regulation Current
6.5 mA
Number of Display Digits
4
Power Output - Minimum
0 W
Voltage Output - Maximum
80 V
Voltage Output - Minimum
0 V
Input Voltage - Maximum
240 V AC
Power Output - Maximum
1,440 W
Input Voltage - Minimum
100 V AC
Digital Display Screen Type
VFD

Description

DC Power Supply, Output Volts (DC) 0 to 80V, Output Current (Amps) 0 to 18 A, Current Limits 0 Percent to 100 Percent, Ripple Volts Regulation Less Than or Equal To 7 mVrms/ Less Than or Equal To 80 mVpp, Line Volts Regulation Less Than or Equal To 8mV, Load Regulation Less Than or Equal To 10 mV, Line Regulation Less Than or Equal To 4 mA, Meter Type Digital, 100-240 V AC Input Voltage, Input Frequency (Hz) 47 to 63 Hz, OCP, OPP and Key-Lock Function, OVP Protection
