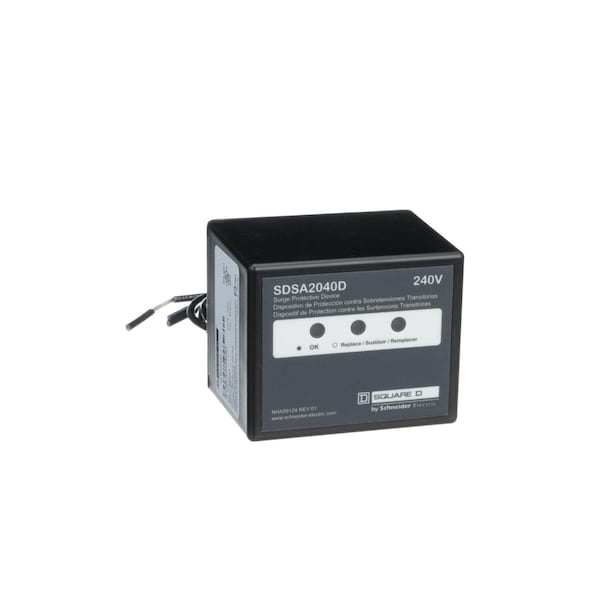

Surge Protection Device, 3 Phase, 240V AC, 3 Wires
- Mfr # SDSA2040D
- Zoro # G3574441
CAD Available
product price:Â
$
222.52
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Mounting Style
Panel
Phase
3
Voltage
240V AC
Number of Wires
3 Wires
Modes of Protection
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- SDSA2040D
- Zoro #
- G3574441
- UPC #
- -
- Country of Origin
- Mexico
- CAD Available
- Yes
- Item
- Surge Protection Device
- Mounting Style
- Panel
- Phase
- 3
- Voltage
- 240V AC
- Number of Wires
- 3 Wires
- Modes of Protection
- 3
- Max. Surge Current per Phase
- 40 kA
- Nominal Discharge Current
- 10 kA
- Short Circuit Current Rating
- 200kA
- Max. Continuing Operating Voltage
- 180V
- Enclosure NEMA Rating
- NEMA 4X
- Enclosure Material
- Plastic
- Standards
- UL 1449:ed. 4 || CSA C22.2 No 8:1986
- Surge Current
- 40 kA
- Mounting Support
- panel mounting
- [Uc] Maximum Continuous Operating Voltage
- 180 V
- Ambient Air Temperature For Operation
- 65-65 °C
- Local Signalling
- status LED normal operation
- Connections - Terminals
- wire AWG 12 copper
- Range of Product
- Surgelogic
Dimensions
- Length
- 78 mm
- Depth
- 67 mm
- Width
- 92 mm
- Cable Length
- 24 in
Description
Surge Protect - 40kA - 240VAC delta - 3P
