Shop B&K PRECISION

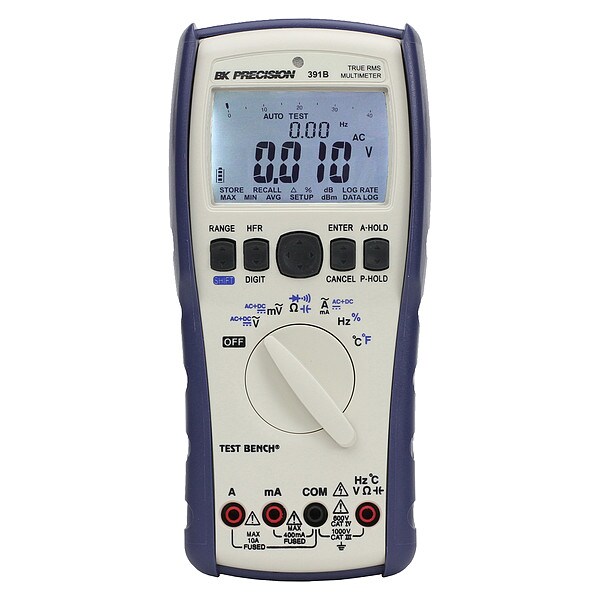

Digital Multimeter, 1,000 V Max DC, 40 V Max AC, TRMS, 40,000 Instrument Counts, Backlit

  • Mfr # 391B

  • Zoro # G210881731

product price:
$
487.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
40,000
Includes
Type K Thermocouple, Magnetic Hanging Strap, Test Leads, USB Communication Cable
Standards
EN 61010-1, EN 61326-1:2013, MC Directive 2014/30/EU
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
391B
Zoro #
G210881731
UPC #
817050039122
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
8.2 in
Overall Width
3.8 in
Depth
2 in
Manufacturers Warranty Length
3 yr
Battery Size
AA

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
40,000
Includes
Type K Thermocouple, Magnetic Hanging Strap, Test Leads, USB Communication Cable
Standards
EN 61010-1, EN 61326-1:2013, MC Directive 2014/30/EU
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Minimum Frequency Measurement
40 Hz
Maximum DC Voltage Measurement
1,000 V
Minimum DC Voltage Measurement
40 mV
DC Current Measurement Resolution
1 uA
Minimum Temperature Measurement
-328 Degrees F
Intrinsically Safe
No
Minimum DC Current Measurement
40 mA
Capacitance Measurement Resolution
0.1 pF
Batteries Included
No
Minimum Storage Temperature
-4 Degrees F
Temperature Measurement Accuracy
+/-1.0%
Removable Screen
No
Maximum Storage Temperature
140 Degrees F
Minimum Resistance Measurement
400 ohm
Current Leakage Testing
No
Battery Voltage
1.5 V
Bluetooth Compatible
No
Resistance Measurement Accuracy
+/-0.2%
Minimum AC Current Measurement
40 mA
Basic DC Voltage Accuracy
+/-0.03%
Frequency Measurement Accuracy
+/-0.1%
Temperature Measurement Resolution
0.1 Degrees F
Basic AC Voltage Accuracy
+/-1%
Maximum Sound Level Measurement
120 dB
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Peak Hold
Yes
Minimum AC Voltage Measurement
40 V
Bar Graph Included
Yes
Thermal Imaging
No
Maximum Frequency Measurement
100 kHz
AC Response Calculation
TRMS
Capacitance Measurement Accuracy
+/-0.8%
Minimum/Maximum Memory
Min/Max
Maximum Resistance Measurement
40 megaohm
Weight
1.4 lb
Instrument Safety Rating
CAT III 1000V, CAT IV 600V
Resistance Measurement Resolution
0.01 ohm
Dustproof
No
Basic DC Current Accuracy
+/-0.2%
Maximum AC Voltage Measurement
1,000 V
Logging Memory
20,000
Maximum Capacitance Measurement
40 mF
Frequency Measurement Resolution
0 Hz
Waterproof
Yes
IP Rating
Not Rated
Maximum DC Current Measurement
10 A
Auto Ranging
Yes
Minimum Capacitance Measurement
4 nF
Maximum AC Current Measurement
10 A
Maximum Temperature Measurement
2,192 Degrees F
Min-Max-Avg Button Included
Yes
Software Included
Yes
Basic AC Current Accuracy
+/-0.8%
Minimum Operating Temperature
14 Degrees F
Calibration Certificate Included
No Certification Included
Voltage Units
mV, V
Data Output Type
USB
Current Units
A, mA
Includes Auto Sensing
No Auto Sensing Included
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Special Features
Dirt Resistant Housing with Rubberized Protective Case
CAT Safety Rating
CAT III 1000V, CAT IV 600V

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1 Percent, Basic DC Voltage Accuracy +/-0.03 Percent, Data Hold Yes, Basic DC Current Accuracy +/-0.2 Percent, Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 40,000, Special Features Dirt Resistant Housing with Rubberized Protective Case, Maximum AC Current Measurement 10 A
