Shop B&K PRECISION

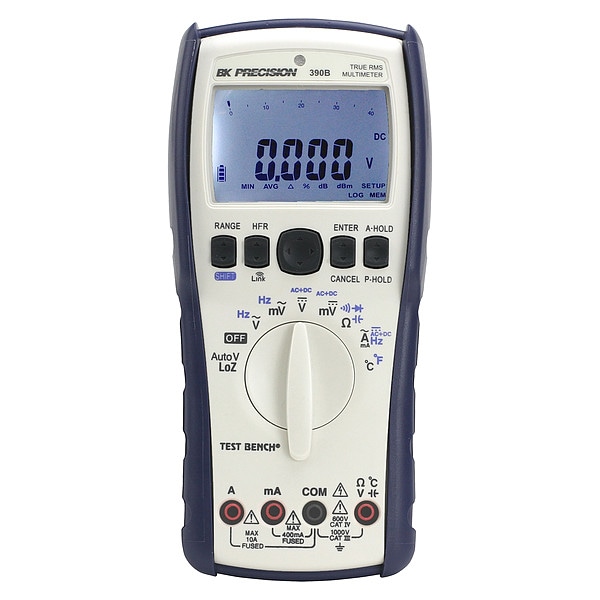

Digital Multimeter with Bluetooth, 1,000 V Max DC, 40 V Max AC, TRMS, 100,000 Instrument Counts

  • Mfr # 390B

  • Zoro # G510881714

product price:  $571.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
100,000
Includes
Type K Thermocouple, Magnetic Hanging Strap, Test Leads, USB Communication Cable
Standards
EN 61010-1, EN 61326-1:2013, MC Directive 2014/30/EU
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
390B
Zoro #
G510881714
UPC #
817050039023
Country of Origin
Taiwan, Province of China

Dimensions

Depth
2 in
True RMS Bandwidth
5 kHz
Overall Height
8.2 in
Manufacturers Warranty Length
3 yr
Overall Width
3.8 in
Battery Size
AA

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
100,000
Includes
Type K Thermocouple, Magnetic Hanging Strap, Test Leads, USB Communication Cable
Standards
EN 61010-1, EN 61326-1:2013, MC Directive 2014/30/EU
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Minimum/Maximum Memory
Min/Max
Minimum Capacitance Measurement
40 nF
Maximum Temperature Measurement
2,192 Degrees F
Weight
1.4 lb
Minimum Resistance Measurement
400 ohm
Temperature Measurement Resolution
0.1 Degrees F
Basic DC Current Accuracy
+/-0.2%
Battery Voltage
1.5 V
Thermal Imaging
No
Batteries Included
No
Maximum Frequency Measurement
100 kHz
Software Included
Yes
Instrument Safety Rating
CAT III 1000V, CAT IV 600V
Capacitance Measurement Resolution
10 pF
Removable Screen
No
Capacitance Measurement Accuracy
+/-0.9%
Maximum AC Voltage Measurement
1,000 V
Maximum AC Current Measurement
10 A
Resistance Measurement Resolution
0.1 ohm
Calibration Certificate Included
No Certification Included
Minimum Storage Temperature
-4 Degrees F
IP Rating
Not Rated
Basic AC Voltage Accuracy
+/-0.5%
Minimum AC Voltage Measurement
40 V
Bar Graph Included
Yes
Maximum Storage Temperature
140 Degrees F
Bluetooth Compatible
Yes
Minimum DC Voltage Measurement
40 mV
Minimum Operating Temperature
14 Degrees F
Auto Ranging
Yes
Resistance Measurement Accuracy
+/-0.2%
Maximum Resistance Measurement
40 megaohm
Dustproof
No
AC Response Calculation
TRMS
Frequency Measurement Accuracy
+/-0.1%
Computer Interface Connection Type
Bluetooth, USB
Minimum Frequency Measurement
40 Hz
Minimum Temperature Measurement
-328 Degrees F
Logging Memory
40,000
Minimum DC Current Measurement
40 mA
Basic AC Current Accuracy
+/-0.8%
Frequency Measurement Resolution
0.1 Hz
DC Current Measurement Resolution
1 uA
Peak Hold
Yes
Maximum Capacitance Measurement
40 mF
Intrinsically Safe
No
Maximum DC Voltage Measurement
1,000 V
Current Leakage Testing
No
Temperature Measurement Accuracy
+/-1.0%
Basic DC Voltage Accuracy
+/-0.03%
Waterproof
Yes
Minimum AC Current Measurement
40 mA
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Min-Max-Avg Button Included
Yes
Maximum DC Current Measurement
10 A
Voltage Units
mV, V
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Includes Auto Sensing
No Auto Sensing Included
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Data Output Type
Bluetooth, USB
Current Units
A, mA
Special Features
Dirt Resistant Housing with Rubberized Protective Case

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.5 Percent, Basic DC Voltage Accuracy +/-0.03 Percent, Data Hold Yes, Basic DC Current Accuracy +/-0.2 Percent, Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 100,000, Special Features Dirt Resistant Housing with Rubberized Protective Case, Maximum AC Current Measurement 10 A
