- MFR #
- Fluke-87-V/E2
- Zoro #
- G2384733
- UPC #
- 095969353274
- Country of Origin
- United States
- Item

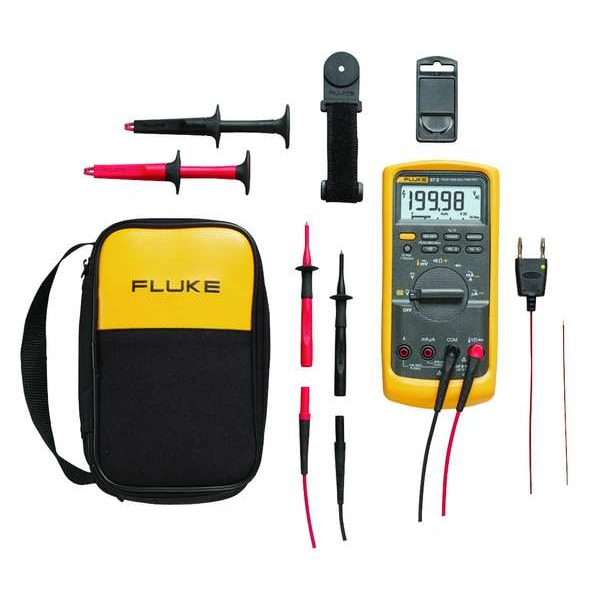

- Digital Multimeter
- Display Type
- Backlit LCD
- Data Hold
- Yes
- Instrument Counts
- 20,000
- Includes
- Alligator Clips, Magnetic Hanging Kit, Soft Carrying Case, Temperature Probe, Test Leads, Yellow Protective Boot
- Standards
- CE, CSA, EN61010-1 CAT III 1000V, TUV, UL, VDE
- Auto Power Off
- Yes
- Data Logging
- Yes
- Audible Continuity
- Yes
- Diode Test
- Yes
- Instrument Safety Rating
- CAT IV 600V
- Capacitance Range
- 100 pF to 9999 uF
- Temp. Range
- -328 Degrees to 1994 Degrees F
- Max. AC Amps
- 10:00 AM
- Basic DC Accuracy
- +/-0.05% of Reading + 1 Digit
- Max. DC Amps
- 10 A
- Instrument Frequency Counter Range
- 0.5 Hz to 200 kHz
- Auto Ranging
- Yes
- Peak Hold
- Yes
- Duty Cycle
- Duty Cycle Test Included
- Multimeter Style
- Full Size - Advanced Features
- Calibration Certificate Included
- No Certification Included
- Display
- Backlit LCD
- Max. Ohms
- 50 megohm
- AC Response
- TRMS
- Series
- FLUKE (R) Fluke-87-V/E2
- Intrinsically Safe
- No
- Minimum Operating Temperature
- -4 Degrees F
- Software Included
- No
- Maximum Frequency Measurement
- 200 kHz
- DC Current Measurement Resolution
- 0.01 uA
- AC Voltage Measurement Resolution
- 0.1 V
- Maximum AC Voltage Measurement
- 1,000 V
- Parameters Measured
- AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Frequency, Resistance, Temperature
- DC Voltage Measurement Resolution
- 10 V
- Maximum DC Voltage Measurement
- 1,000 V
- AC Response Calculation
- TRMS
- Basic AC Current Accuracy
- +/-(1.0% + 2)
- Basic DC Voltage Accuracy
- +/-0.05% + 1 Digit
- Frequency Measurement Resolution
- 0.01 Hz
- Maximum DC Current Measurement
- 10 A
- Basic DC Current Accuracy
- +/-(0.2% + 2)
- Bar Graph Included
- Yes
- Resistance Measurement Resolution
- 0.1 ohm
- AC Current Measurement Resolution
- 0.1 uA
- Maximum AC Current Measurement
- 10 A
- Thermal Imaging
- No
- Capacitance Measurement Accuracy
- +/-(1% + 2)
- Min-Max-Avg Button Included
- Yes
- Minimum AC Current Measurement
- 0 A
- Dustproof
- No
- Waterproof
- No
- Minimum Storage Temperature
- -40 Degrees F
- Minimum DC Current Measurement
- 0 A
- Minimum/Maximum Memory
- Min/Max
- Battery Chemistry
- Alkaline
- Maximum Temperature Measurement
- 1,994 Degrees F
- Minimum DC Voltage Measurement
- 0 V
- Maximum Capacitance Measurement
- 9,999 uF
- Minimum Temperature Measurement
- -328 Degrees F
- Current Leakage Testing
- No
- Resistance Measurement Accuracy
- +/-0.2%
- Battery Access
- Yes
- Basic AC Voltage Accuracy
- +/-(0.7% + 2)
- Battery Voltage
- 9 V
- Maximum Resistance Measurement
- 50 megaohm
- Temperature Measurement Accuracy
- +/-2.00%
- Frequency Measurement Accuracy
- +/-(0.005% + 1)
- Capacitance Measurement Resolution
- 0.01 nF
- Minimum Frequency Measurement
- 0.5 Hz
- Weight
- 624 g
- Maximum Storage Temperature
- 140 Degrees F
- Bluetooth Compatible
- No
- Removable Screen
- No
- Computer Interface Connection Type
- None
- Minimum AC Voltage Measurement
- 0 V
- Minimum Capacitance Measurement
- 100 pF
- Special Features
- Optimized for Adjustable Speed Motor Drive Testing
- Temperature Types Measured
- Temperature Degrees C, Temperature Degrees F
- CAT Safety Rating
- CAT III 1000V, CAT IV 600V
- Includes Auto Sensing
- No Auto Sensing Included
- IP Rating
- Not Rated
- Current Units
- A, mA
