  11. Dual Range DC Power Supply, 120/220V AC, 30V DC; 60V DC, 350 W, 10A, 5A

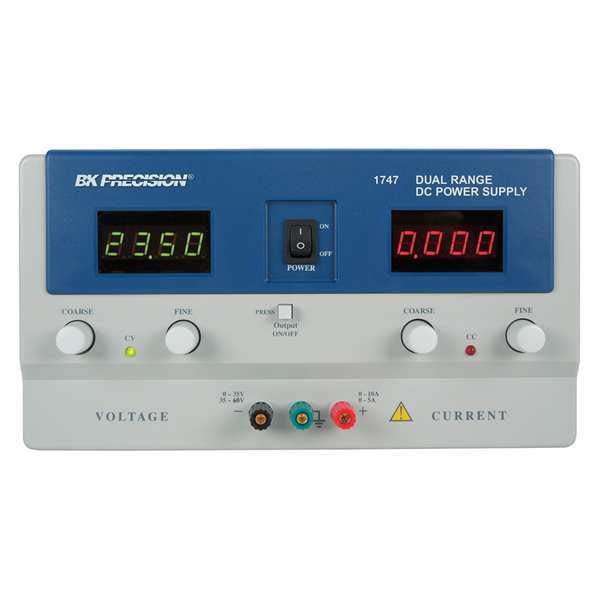

B&K Precision Dual Range DC Power Supply, 120/220V AC, 30V DC; 60V DC, 350 W, 10A, 5A 1747 - main

Dual Range DC Power Supply, 120/220V AC, 30V DC; 60V DC, 350 W, 10A, 5A

  • Mfr # 1747

  • Zoro # G8065032

product price: $1,189.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
120/220V AC
Output Voltage - Nominal
30V DC; 60V DC
Output Power - Rated
350 W
Current - Output
10A, 5A
Overall Height
10-3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1747
Zoro #
G8065032
UPC #
817050174700
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
10-3/4 in
Overall Width
6 in
Overall Depth
14 in
Manufacturers Warranty Length
2 yr
Depth
14 in
Height
6 in
Width
10-3/4 in

Details

Item
Dual Range DC Power Supply
Input Voltage
120/220V AC
Output Voltage - Nominal
30V DC; 60V DC
Output Power - Rated
350 W
Current - Output
10A, 5A
Display
Dual LED
Line Regulation
0.01% + 3 mV
Load Regulation
0.01% + 5 mV
Protection
Overload Protection, Reverse Polarity Protection
Includes
AC Power Cord, RS-232 Cable, Shorting Bar
Calibration Certificate
No
Current Limits
Constant Current Operation
Meter Type
Digital
Connection
Banana Plug
Line Volts Regulation
0.01% + 3mV
Ripple Volts Regulation
1 mVrms
Output Voltage
30V DC; 60V DC
Hz
50/60 Hz
Power Rating
350 W
Output Amps
10A, 5A
Ripple Voltage Regulation
Less Than 1 mVrms
Line Regulation Current
0.2% + 3 mA
Number of Display Digits
4
Current Output - Maximum
10 A
Interface
RS-232
Load Regulation Voltage
0.01% + 5 mV
Current Output - Minimum
0 A
Load Regulation Current
0.2% + 3mA
Line Regulation Voltage
0.01% + 3mV
Calibration Certificate Type
Not Certified

Description

DC Power Supply, Output Volts (DC) Low Range: 0-35V; High Range: 0-60V, Output Current (Amps) Low Range: 0-10 A; High Range: 0-5 A, Current Limits Constant Current Operation, Ripple Volts Regulation 1 mVrms, Line Volts Regulation 0.01 Percent + 3mV, Load Regulation 0.01 Percent + 5 mV, Line Regulation 0.01 Percent + 3 mV, Meter Type Digital, 120/220V AC +/-10 Percent Input Voltage, Input Frequency (Hz) 50/60 Hz, Overload Protection, Reverse Polarity Protection Protection, Banana Plug Connection
