This item is Discontinued.

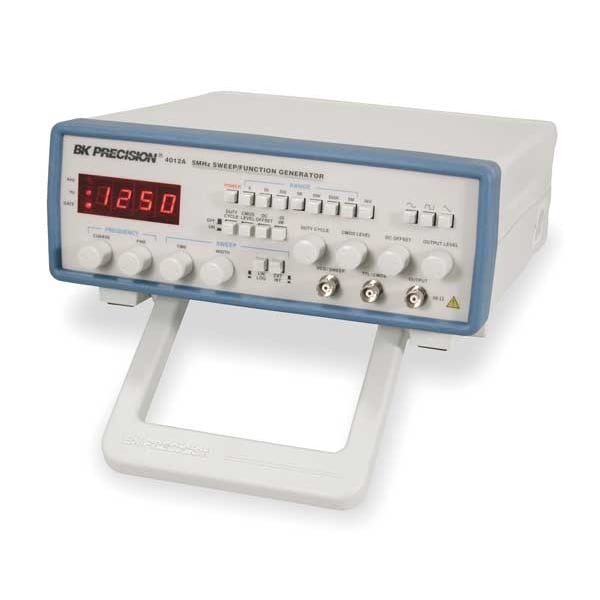

B&K Precision Generator, Function 4012A

Generator, Function (Discontinued)

  • Mfr # 4012A
  • Zoro # G1505795
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4012A
Zoro #
G1505795
UPC #
817050401219
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
2 yr

Details

Item
Sweep Function Generator
Sine Wave Range
0.5 Hz to 5 MHz
Square Wave Range
0.5 Hz to 5 MHz
Other Waveform Range
Triangle 0.5 Hz to 5
Sine Wave Distortion
Less Than 3% @ 1 KHz
Sq. Wave Rise/Fall Time (nS)
Less Than 30
Sweep Rate
0.5 sec to 30 sec
Output Amplitude
10 Vp-p into 50 ohm, 20 Vp-p Open Circuit
Sine/Square Wave Accuracy
+/-10 PPM +/-1 Count
Impedance (Ohms)
50 ohm
Sweep
Yes
Display
4 Digit LED
Sine Wave Range (MHz)
0.5 Hz to 5 MHz
Output Attenuation
-20 dB +/-1 dB
Includes
BNC to Alligator Clip, Power Cord
Sweep Type
Internal Linear or Logarithmic
Square Wave Range (MHz)
0.5 Hz to 5 MHz
Power Source
120/230 V AC 50 to 60 Hz
Sweep Range
100:1
Product Type
Sweep Function Generator
Triangle Wave Frequency - Maximum
5 MHz
Single Pulse Wave Frequency - Minimum
0.5 MHz
Single Pulse Wave Frequency - Maximum
5 MHz
Square Wave Frequency - Minimum
0.5 MHz
Triangle Wave Frequency - Minimum
0.5 Hz
Waveforms Generated
Pulse, Sine, Square, Triangle
Number of Display Digits
4
Sine Wave Frequency - Minimum
0.5 MHz
Number of Channels
1
Calibration Certificate Type
Not Certified
Wave Frequency Accuracy
+/-10 PPM (23 Degrees C +/-5 Degrees C)
Sine Wave Harmonic Distortion
Less Than 3% typical at 1 kHz
Sweep Time - Minimum
0.5 sec
Square Wave Frequency - Maximum
5 MHz
Square Wave Rise/Fall Time
Less Than 30 nsec
Sweep Time - Maximum
30 sec
Digital Display Screen Type
LED
Sine Wave Frequency - Maximum
5 MHz

Description

Sweep Function Generator, -, Sine Wave Range 0.5 Hz to 5 MHz, Square Wave Range 0.5 Hz to 5 MHz, Other Waveform Range Triangle 0.5 Hz to 5, Sine Wave Distortion Less Than 3 Percent @ 1 KHz, Sq. Wave Rise/Fall Time (nS) Less Than 30, Output Amplitude 10 Vp-p into 50 ohm, 20 Vp-p Open Circuit, Impedance (Ohms) 50 ohm, Output Attenuation -20 dB +/-1 dB, Yes Sweep, Internal Linear or Logarithmic Sweep Type, Sweep Range 100:1, Sweep Rate 0.5 sec to 30 sec, AM Modulation -, FM Modulation -
