Shop B&K PRECISION

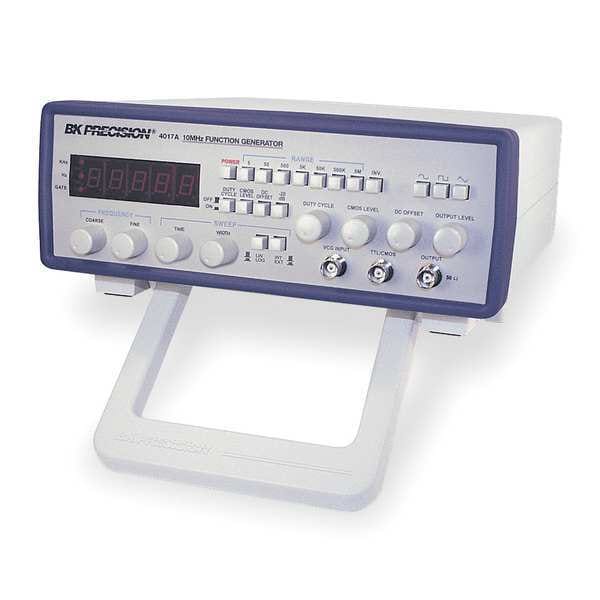

Generator, Function

  • Mfr # 4017A
  • Zoro # G0895824
product price:
$
674.99
/ea
Free Shipping & Returns

Key Features

Sine Wave Range
0.1 Hz to 10 MHz
Square Wave Range
0.1 Hz to 10 MHz
Other Waveform Range
Triangle 0.1 Hz to 10 MHz
Sine Wave Distortion
Less Than 3% @ 1 KHz
Sq. Wave Rise/Fall Time (nS)
Less Than 30
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4017A
Zoro #
G0895824
UPC #
817050401714
Country of Origin
Taiwan, Province of China
Item
Sweep Function Generator
Sine Wave Range
0.1 Hz to 10 MHz
Square Wave Range
0.1 Hz to 10 MHz
Other Waveform Range
Triangle 0.1 Hz to 10 MHz
Sine Wave Distortion
Less Than 3% @ 1 KHz
Sq. Wave Rise/Fall Time (nS)
Less Than 30
Impedance (Ohms)
50 ohm
Display
5 Digit LED
Output Amplitude
10Vp-p into 50 ohm (20 Vp-p Open Circuit)
Sweep
Yes
Sweep Rate
0.5 sec to 30 sec
Includes
BNC to Alligator Clip
Square Wave Range (MHz)
0.1 Hz to 10 MHz
Sweep Type
Internal Linear or Logarithmic
Output Attenuation
-20 dB +/-1 dB
Sweep Range
100:1
Sine Wave Range (MHz)
0.1 Hz to 10 MHz
Sine/Square Wave Accuracy
+/-10 PPM +/-1 Count
Power Source
120/230 V AC 50 to 60 Hz
Product Type
Sweep Function Generator
Square Wave Frequency - Maximum
10 MHz
Wave Frequency Accuracy
+/-10 PPM (23 Degrees +/-5 Degrees C)
Single Pulse Wave Frequency - Minimum
0.1 Hz
Sine Wave Frequency - Minimum
0.1 Hz
Square Wave Frequency - Minimum
0.1 Hz
Sweep Time - Maximum
30 sec
Sine Wave Harmonic Distortion
Less Than or Equal to 3% @ 1 kHz
Single Pulse Wave Frequency - Maximum
10 MHz
Sine Wave Frequency - Maximum
10 MHz
Triangle Wave Frequency - Minimum
0.1 MHz
Calibration Certificate Type
Not Certified
Number of Channels
1
Number of Display Digits
5
Square Wave Rise/Fall Time
Less Than 30 nsec
Digital Display Screen Type
LED
Sweep Time - Minimum
0.5 sec
Waveforms Generated
Pulse, Sine, Square, Triangle
Triangle Wave Frequency - Maximum
10 MHz

Description

Sweep Function Generator, -, Sine Wave Range 0.1 Hz to 10 MHz, Square Wave Range 0.1 Hz to 10 MHz, Other Waveform Range Triangle 0.1 Hz to 10, Sine Wave Distortion Less Than 3 Percent @ 1 KHz, Sq. Wave Rise/Fall Time (nS) Less Than 30, Output Amplitude 10Vp-p into 50 ohm (20 Vp-p Open Circuit), Impedance (Ohms) 50 ohm, Output Attenuation -20 dB +/-1 dB, Yes Sweep, Internal Linear or Logarithmic Sweep Type, Sweep Range 100:1, Sweep Rate 0.5 sec to 30 sec, AM Modulation -, FM Modulation -
