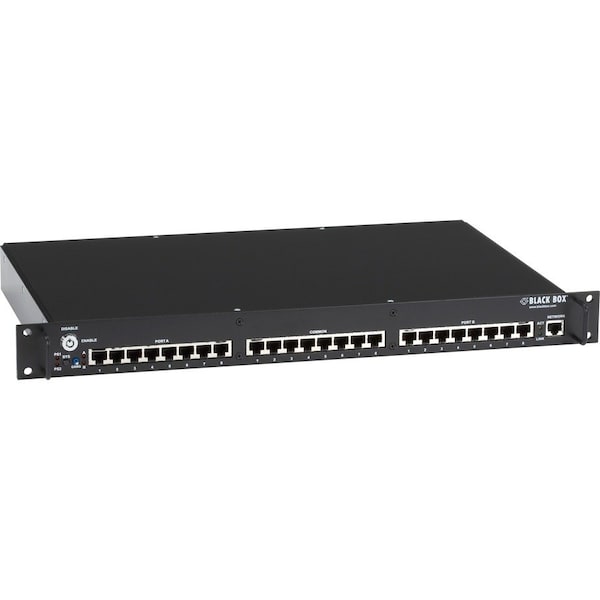

Black Box BLACK BOX Gang Switch - Pro Switching System NBSALL8MGR - main

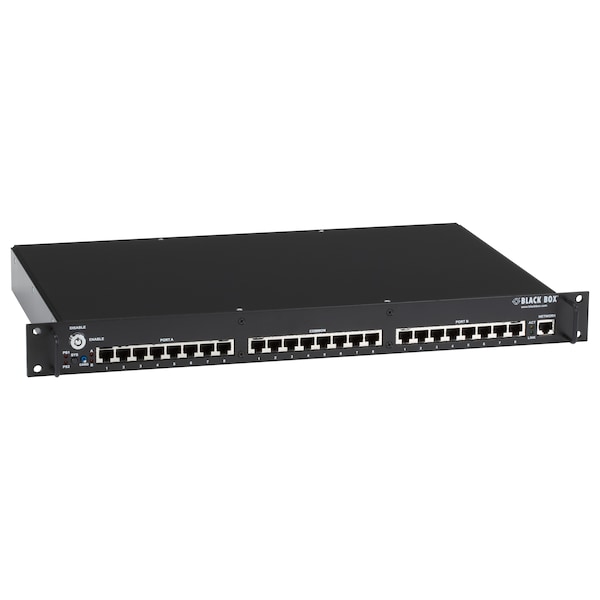

BLACK BOX Gang Switch - Pro Switching System

  • Mfr # NBSALL8MGR

  • Zoro # G2165732

product price:  $1,637.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
110 to 230V AC
Mounting
Rack
Depth
10.5 in
Operating Temp. Range (F)
32 to 104°F
Standards
CE Approval
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NBSALL8MGR
Zoro #
G2165732
UPC #
822088112198
Country of Origin
Unknown

Dimensions

Depth
10.5 in
Height
1.8 in
Width
17.3 in

Details

Item
Ethernet Switch
Input Voltage
110 to 230V AC
Mounting
Rack
Operating Temp. Range (F)
32 to 104°F
Standards
CE Approval
Connector Type
Switch Circuits: (8) containing (3) RJ45 (A/B/C) for a total of (24) RJ45; Management Port: (1) RJ45 (10BASE-T); Serial Control Port: (1) DB9 (Female) (RS-232); Daisychain Port: (2) RJ-11 (gang in/gang out)
Mean Time Between Failures
Greater than 1.3 million hrs
Operating Humidity
Up to 95%, Noncondensing
Indicators
Power supply LEDs: (1) status 1, (1) status 2; Switch position LEDs: (1) all ports position A, (2) all ports position B; Network status LEDS: (1) management port ON, (1) command activity
Switches
A/B gang switch: (1) momentary toggle switch; Gang switch enable: (1) key-lock switch; System select switch: (1) momentary push-button switch; Rack address switch: (1) 8-position DIP switch; Configuration switch: (1) 8-position DIP switch
Port/Expansion Slot Details
24 x Gigabit Ethernet Network, 1 x Fast Ethernet Network
Power Source
Power Supply
Media Type Supported
Twisted Pair
Manageable
Yes
Frequency
60 Hz
Ethernet Technology
Gigabit Ethernet
Green Environmental Attribute
Environmentally Friendly
Compatible Rack Unit
1U
Redundant Power Supply Supported
Yes
Total Number of Network Ports
8
Network Technology
10/100/1000Base-T
Environmentally Friendly
Yes
Layer Supported
2
Mounting Type
Rack-mountable
