Gigatrue 3 Cat6. Shielded Patch Cord Ora

Name: Gigatrue 3 Cat6. Shielded Patch Cord Ora
Brand: Black Box
SKU: G0553389
Price: 706.99 USD
Availability: InStock

706.99

/ea

Free Shipping & Returns

Standards

Component Level Verified; ANSI/TIA-568-C.2 Category 6A; IEEE 802.3 an; UL 444, 1666; UL E196163-P

Conductor Material

Copper

Jacket Material

PVC

Number of Conductor Pairs

Outside Dia.

0.334 in

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

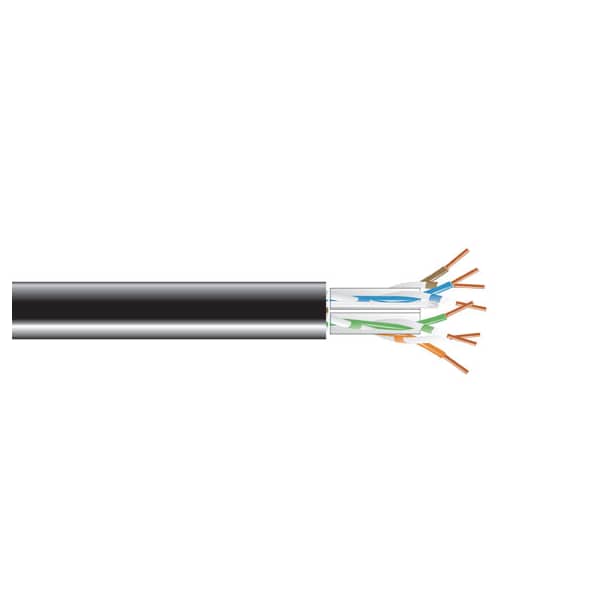

Item: Ethernet Bulk Cable
Standards: Component Level Verified; ANSI/TIA-568-C.2 Category 6A; IEEE 802.3 an; UL 444, 1666; UL E196163-P
Conductor Material: Copper
Jacket Material: PVC
Number of Conductor Pairs: 4
Category - Data Cable: Cat 6A
Solid / Stranded: Solid
Insertion Loss (Maximum): 19.14 dB/100 m at 100 MHz; 31.07 dB/100 m at 250 MHz; 42.71 dB at 500 MHz
PS-ACRF: 24.8 dB/100 m at 100 MHz; 16.84 dB/100 m at 250 MHz; 11.74 dB at 500 MHz
DC Resistance Unbalance: 4% Maximum
Propagation Delay: 650 MHz, 535.4 ns/100m maximum
ACRF: 27.8 dB/100 m at 100 MHz; 19.84 dB/100 m at 250 MHz; 14.74 dB at 500 MHz
PS-NEXT: 42.30 dB/100 m at 100 MHz; 36.33 dB/100 m at 250 MHz; 32.50 dB at 500 MHz
PS-ANEXT: 62.5 dB/100 m at 100 MHz; 56.53 dB/100 m at 250 MHz; 52.7 dB at 500 MHz
Insulation Material: HDPE
NEXT: 44.30 dB/100 m at 100 MHz; 38.33 dB/100 m at 250 MHz; 34.50 dB at 500 MHz
Return Loss: 20.11 dB/100 m at 100 MHz; 17.32 dB/100 m at 250 MHz; 15.53 dB at 500 MHz
PS-AACRF: 38.2 dB/100 m at 100 MHz; 30.24 dB/100 m at 250 MHz; 25.14 dB at 500 MHz
Capacitance Unbalance (Pair to Ground): 330 pF/100 m Maximum
Delay Skew: 45 ns/100 m at 650 MHz Maximum
