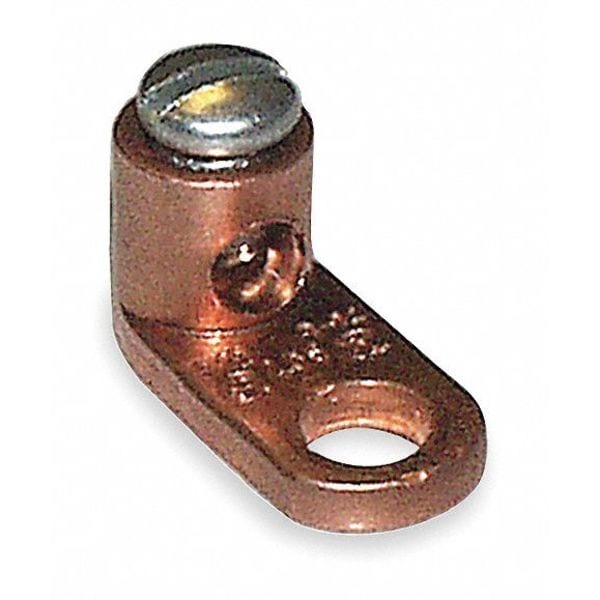

Mechanical Lug, 1/0 AWG Max, 1 Conductor, 1 Hole, 21/64 in Stud, Copper
Mfr # L125BB
Zoro # G0349937
CAD Available
product price: $6.65
/eaKey Features
CAD Drawing
For Conductor Material
Copper
For Minimum Wire Size
8 AWG
For Maximum Wire Size
1/0 AWG
Number of Conductors
1
Number of Terminations
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
L125BB
Zoro #
G0349937
UPC #
783786130030
Country of Origin
Mexico
Dimensions
For Minimum Wire Size
8 AWG
For Maximum Wire Size
1/0 AWG
For Stud Size
21/64 in
Hole Diameter
0.33 in
Tongue Width
0.73 in
Stud Size
21/64 in
Min. Conductor Size
8 AWG Solid
Width
0.73 in
Max. Conductor Size
1/0 AWG Stranded
Length
1.5 in
Length (Straight Wireway)
1.5 in
Overall Length
1.5 in
Overall Depth
3/4 in
Tongue Thickness
0.09 in
For Stranded Copper Wire Size - Minimum
8 AWG
Tongue Length
0.78 in
For Stranded Copper Wire Size - Maximum
1/0 AWG
Overall Width
0.73 in
Cable Size
8-1/0 AWG
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, For Stud Size 21/64 in, Head Style Socket, Number of Holes 1, Hole Diameter 0.33 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.78 in, Tongue Width 0.73 in, Tongue Thickness 0.09 in
