Shop All Mechanical Lugs
Burndy

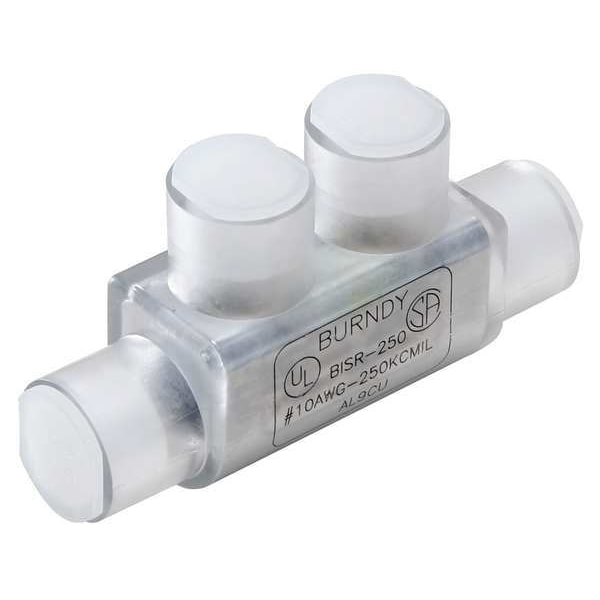

Insulated Multitap Connector, 4.01 In. L

product price: $34.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Double-Sided Entry
  • No. of Ports 2
  • Min. Conductor Size 10 AWG
  • Max. Conductor Size 250 kcmil
  • Stud Size 3/16 in
See all product information

Product Information

Dimensions

Min. Conductor Size 10 AWG
Max. Conductor Size 250 kcmil
Stud Size 3/16 in
Length 4.01 in
Width 2.1 in
Length (Straight Wireway) 4.01 in
Overall Length 4.01 in
Hex Size 5/16 in
For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4 AWG, 4/0 AWG, 6 AWG, 8 AWG
Overall Width 1.19 in
For Stranded Copper Wire Size - Minimum 10 AWG
Strip Length 1 3/16 in
For Stranded Copper Wire Size - Maximum 250 kcmil

Details

Item Insulated Multitap Connector
Connector Type Double-Sided Entry
No. of Ports 2
Insulation Material Plastisol
Direct Burial Rated No
Screw Material Aluminum
Body Material Aluminum
Max. Voltage 600V AC/DC
Head Style Hex
Standards CSA Approved, UL 486A, UL 486B, UL Listed
Special Features Eliminates Taping, Insulated, Lowers Installation Costs, Oxide Inhibitor Inhibits Moisture and Contaminants From Entering the Contact Area, Saves Time
Number of Ports 2
Maximum Operating Temperature 194 Degrees F
Color Clear
Tap Shape T
Maximum Voltage 600 V
For Conductor Material Aluminum, Copper
RoHS Compliant Yes
Current 250 A
Compatible with Product Type Code Conductor
Finish Unplated
Torque 275 in-lb

Description

Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards CSA Approved, UL 486A, UL 486B, UL Listed
