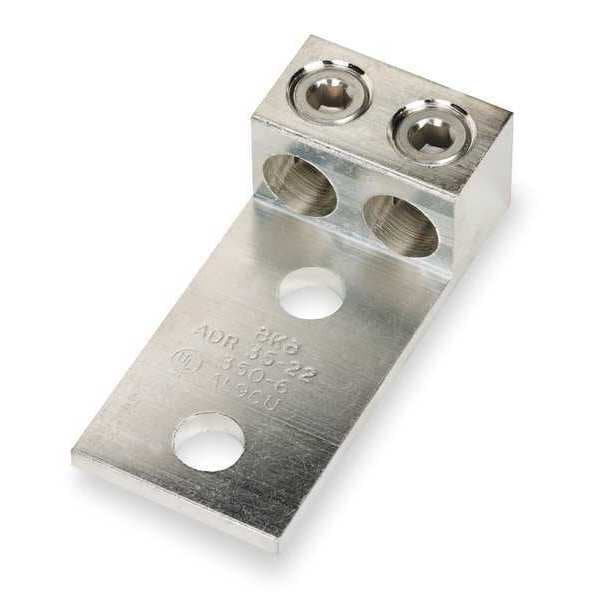

Mechanical Lug, 350 kcmil Max, 2 Conductor, 2 Hole, 1/2 in Stud, Aluminum
Mfr # ADR35-22
Zoro # G2948477
CAD Available
product price: $14.79
/eaKey Features
CAD Drawing
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
6 AWG
For Maximum Wire Size
350 kcmil
Number of Conductors
2
Number of Terminations
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ADR35-22
Zoro #
G2948477
UPC #
783786610235
Country of Origin
Mexico
Dimensions
For Minimum Wire Size
6 AWG
For Maximum Wire Size
350 kcmil
For Stud Size
1/2 in
Hole Diameter
0.50 in
Tongue Width
2.30 in
Stud Size
1/2 in
Min. Conductor Size
6 AWG Stranded
Width
2.3 in
Max. Conductor Size
350 kcmil Stranded
Length
4.25 in
Length (Straight Wireway)
4.25 in
Tongue Thickness
0.31 in
Overall Width
2.3 in
Overall Length
4.25 in
Tongue Length
3 in
For Stranded Copper Wire Size - Maximum
350 kcmil
For Stranded Copper Wire Size - Minimum
6 AWG
Overall Depth
1 3/8 in
Width (inches)
23426
Length (inches)
38078
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 350 kcmil, For Stud Size 1/2 in, Head Style Hex Socket, Number of Holes 2, Hole Diameter 0.5 in, Hole Spacing 1.22 in, Body Material Aluminum, Maximum Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 2, Number of Terminations 1, Tongue Length 3 in, Tongue Width 2.3 in, Tongue Thickness 0.31 in, Connector Type Dual Rated Lug
