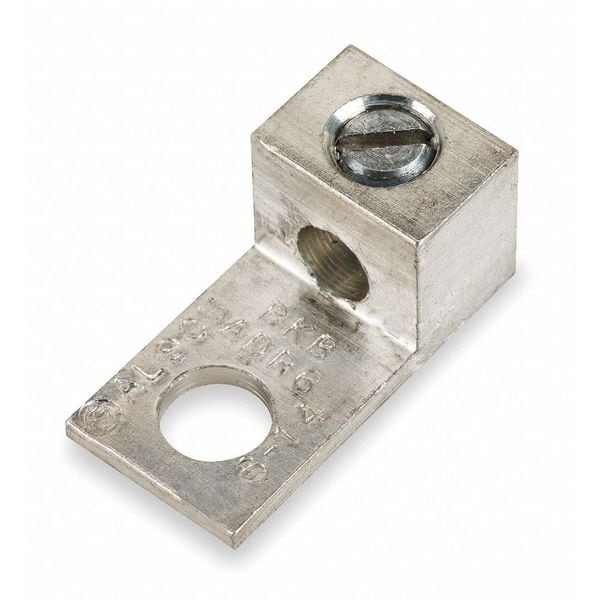

Mechanical Lug, 6 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Aluminum
Mfr # ADR6
Zoro # G2784074
CAD Available
product price: $1.15
/eaKey Features
CAD Drawing
No. of Conductors
1
Min. Conductor Size
14 AWG Solid
Max. Conductor Size
6 AWG Stranded
Number of Holes
1
Stud Size
1/4 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ADR6
Zoro #
G2784074
UPC #
783786610013
Country of Origin
Mexico
Dimensions
Min. Conductor Size
14 AWG Solid
Max. Conductor Size
6 AWG Stranded
Stud Size
1/4 in
Length
1.05 in
Width
0.5 in
Length (Straight Wireway)
1.05 in
Hole Diameter
0.25 in
Tongue Length
0.67 in
For Stud Size
1/4 in
For Stranded Copper Wire Size - Maximum
6 AWG
Overall Depth
1/2 in
For Stranded Copper Wire Size - Minimum
14 AWG
Overall Width
0.5 in
Tongue Thickness
0.08 in
Overall Length
1.05 in
Tongue Width
0.50 in
Outer Dimensions (inches)
14.7x6.6x4.6
Inner Dimensions (inches)
4.3x2.9x3.1
For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.25 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.67 in, Tongue Width 0.5 in, Tongue Thickness 0.08 in
