Blancett

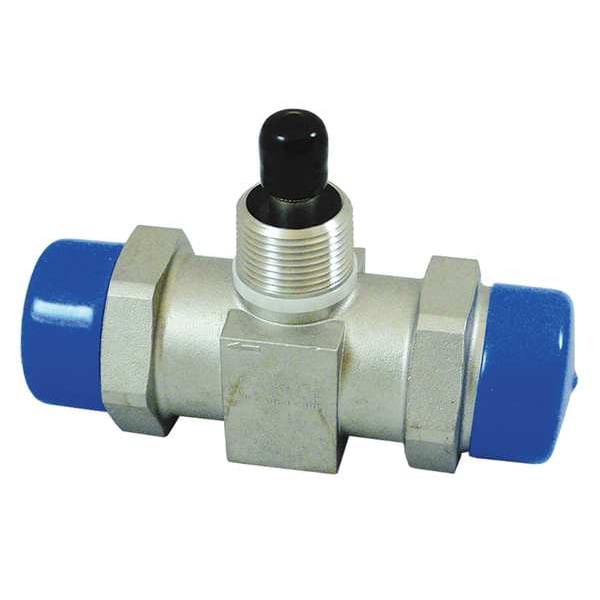

Flowmeter, Turbine, 180 GPM, 1-1/2 In MNPT

original price: $1,297.12
48% off
new price: $664.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material Stainless Steel
  • Type Turbine
  • For Pipe Size 1 1/2 in
  • Flow Material Low Viscosity Fluids, Water
  • Connection Size 1 1/2 in
See all product information

Product Information

Dimensions

For Pipe Size 1 1/2 in
Connection Size 1 1/2 in
Width (In.) 2-3/8"
Width 2 3/8 in
Connection Size (In.) 1-1/2 MNPT
Length (In.) 6"
Height 4 1/4 in
Manufacturers Warranty Length 1 yr
Length 6 in
Height (In.) 4-1/4
Overall Width 2.4 in
Overall Height 4.3 in
Overall Length 6 in
Manufacturer Warranty Length 1 yr

Details

Item Mechanical Flowmeter
Housing Material Stainless Steel
Type Turbine
Flow Material Low Viscosity Fluids, Water
Connection Type NPT
Max. Pressure 5,000 psi
Wetted Materials 316 Stainless Steel, Tungsten Carbide
Max. Viscosity 150 SUS
Flow Range 15 to 180 gpm
Fluid Temp. Range -150 Degrees to 350 Degrees F
Fitting 1-1/2 in MNPT
Max. Viscosity (SSU) 400
Agency Compliance CSA, MET LABS
Flow Range (GPM) 15 to 180
Flow Range (LPM) 56.8 to 681.4
Pressure Drop - 100% Flow (PSI) 20.0 psi
Shaft Material Tungsten Carbide
Output Frequency
Temp. 350 Degrees F
Chamber Material 316 Stainless Steel
Pulses per Gallon 330 pulses/gal
Accuracy (%) 1% of reading
Max. Temp. (F) 350
Max. Pressure (PSI) 5000
GPM Max. 180 gpm
Standards CSA C22.2 No. 30-M1986, Met Labs File No. E11286, UL1203
Output Type Standard Frequency Pulse
Product Type Turbine Flow Meter
Operating Pressure - Maximum 5,000 psi
Includes Totalizer No
Flow Rate - Minimum 15 gpm
Accuracy +/-1%
Flowmeter Type Turbine
Pulse Rate 330 pulses/gal
Viscosity - Maximum 150 SUS
Includes Pressure Gauge No
Compatible Flow Material Oils, Water
Flow Rate - Maximum 180 gpm
Includes Flow Rate Adjustment Knob No
Media Temperature - Maximum 425 Degrees F
Media Temperature - Minimum -150 Degrees F
Mounting Orientation Universal
Unit Of Measure Gallons
Wetted Material 316 Stainless Steel, Tungsten Carbide
Rotor Material Stainless Steel

Description

Mechanical Flowmeter, Product Type Turbine Flow Meter, Flowmeter Type Turbine, Accuracy +/-1 Percent, Connection Size 1 1/2 in, Connection Type NPT, Compatible Flow Material Oils, Water, Media Temperature - Maximum 425 Degrees F, Media Temperature - Minimum -150 Degrees F, Viscosity - Maximum 150 SUS, Voltage - Maximum Not Applicable, Housing Material Stainless Steel, Rotor Material Stainless Steel, O-Ring Material Not Applicable, Seal Material Not Applicable, Shaft Material Tungsten Carbide
