Gems Sensors

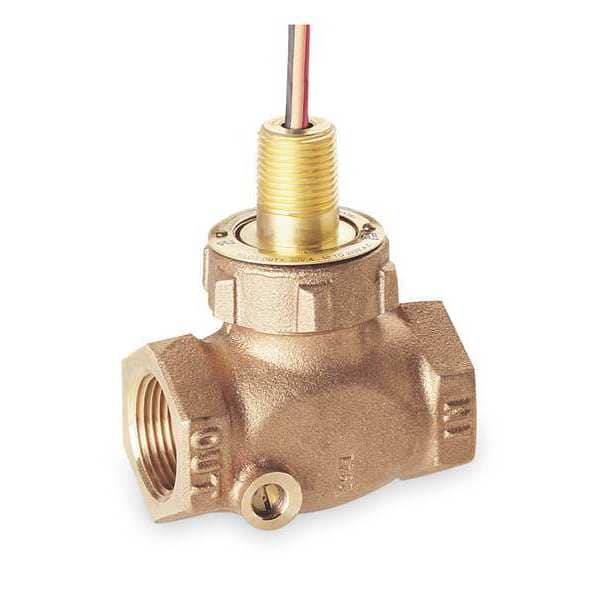

1" FNPT SPDT Liquid Flow Switch 2 to 8 gpm

product price: $338.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size (In.) 1 FNPT
  • Switch Type SPDT
  • Max. Pressure 400 psi
  • Contact Rating 20VA
  • Type Shuttle
See all product information

Product Information

Dimensions

Connection Size (In.) 1 FNPT
Overall Length 3.3 in
Connection Size 1 in
Overall Height 3 in
Overall Width 1.8 in

Details

Switch Type SPDT
Max. Pressure 400 psi
Contact Rating 20VA
Item Liquid Flow Switch
Type Shuttle
Float Switch Contact Form SPDT
Body Material Bronze
Flow Rate 2 to 8 gpm
Max. Pressure (PSI) 400 psi
Min. Ambient Temp. (F) -20 Degrees
Max. Ambient Temp. (F) 200 Degrees F
Min. Fluid Temp. (F) -20 Degrees F
Max. Fluid Temp. (F) 200 Degrees F
Material of Construction Bronze, Ceramic, PTFE, Stainless Steel, Viton
Recommended Filtration (microns) 150 micron
Standards CSA Certified, FM Approved, UL Listed
Media Temperature - Maximum 200 Degrees F
Flow Rate - Maximum 8 gpm
Switch Position Normally Closed, Normally Open
Set Point Configuration Adjustable
Flow Rate - Minimum 2 gpm
Connection Type FNPT
Hazardous Location Specification Class I, Div 2, Group A, B, C, D
Contact Rating (DC) 20 V
Flow Switch Type Piston
Media Temperature - Minimum -20 Degrees F
Housing Material Bronze
Wetted Material 316 Stainless Steel, Bronze, Ceramic, PTFE, Viton
Filter Rating - Maximum 150 micron
Ambient Temperature - Minimum -20 Degrees F
Ambient Temperature - Maximum 200 Degrees F

Description

Liquid Flow Switch, Ambient Temperature - Maximum 200 Degrees F, Ambient Temperature - Minimum -20 Degrees F, Connection Size 1 in, Connection Type FNPT, Contact Rating (DC) 20 V, Filter Rating - Maximum 150 micron, Flow Rate - Maximum 8 gpm, Flow Rate - Minimum 2 gpm, Flow Switch Type Piston, Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Housing Material Bronze, Media Temperature - Maximum 200 Degrees F, Media Temperature - Minimum -20 Degrees F, Overall Height 3 in
