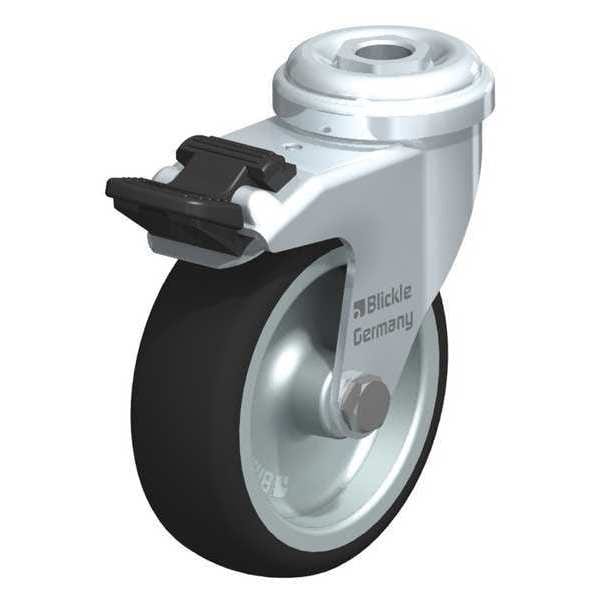

Kngpn Swvl Cstr, Urthane, 3", 165 lb., Brk

Name: Kngpn Swvl Cstr, Urthane, 3", 165 lb., Brk
Brand: Blickle
SKU: G9657597
Price: 23.29 USD
Availability: InStock

$23.29

/ea

Caster Sub-Type

Swivel

Caster Product Group

Swivel Caster With Brake

Wheel Dia.

75 mm

Wheel Width

25 mm

Mounting Bolt Dia.

M10

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type: Swivel
Caster Product Group: Swivel Caster With Brake
Non-Marking: Yes
Number of Wheels: 1
Frame Finish: Zinc Plated
Caster Frame Material: Steel
Wheel Core Material: Nylon
Core Color: Gray
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards: RoHS, ICWM
Includes: Stop-Fix Total-Lock Brake
Caster Load Rating Range: Light Duty
Replacement Wheel: Mfr. No. PATH 75/8G
Caster Swivel Lock Type: Total-Lock
Caster Wheel Bearings: Plain
Extended Lead: No
Caster Temp. Range: -25 Degrees To 70 Degrees C
Caster Brake Included: Yes
Caster Wheel/Tread Material: Thermoplastic Polyurethane
Caster Raceway: Double Ball
System of Measurement: Metric
Resistant To: Very High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type: Hollow Kingpin
Tread Color: Dark Gray
Load Capacity: 75 kg
Caster Break Type: Stop Fix Brake (Total Lock)
Includes Thread Guards: No
Wheel/Tread Hardness: 94 Shore A
Series: LRA Series
Tread: Standard
ESD Conductive: No
Tread Shape: Standard
Swivel Raceway Type: Double Ball
