Shop BLICKLE

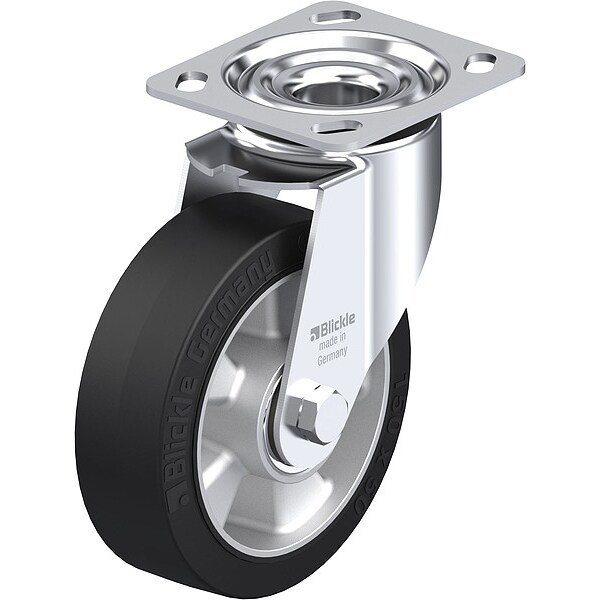

Plate Caster, Swivel, Rubber, 7 1/2"H

  • Mfr # LE-ALEV 150K-14
  • Zoro # G914810778
product price:
$
90.35
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
203 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LE-ALEV 150K-14
Zoro #
G914810778
UPC #
-
Country of Origin
Germany
Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Series
ALEV
Wheel/Tread Color
Black
Application
Commercial
Frame Finish
Zinc Plated
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process
Operating Temperature - Maximum
175 Degrees F
Swivel Raceway Type
Double Ball
Mounting Hole Type
Slot
Operating Temperature - Minimum
-5 Degrees F
Swivel Bearing Seal Type
Sealed
Load Capacity - Maximum
1,655 lb
Mounting Plate Shape
Rectangle
Includes Thread Guards
No
Frame Construction
Pressed
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Product Type
Plate Caster

Dimensions

Wheel Dia.
203 mm
Wheel Width
51 mm
Mounting Height
191 mm
Mounting Plate Thickness
6 mm
Mounting Bolt Dia.
10 mm
Outside Slot Spacing - Width
76.2 mm
Inside Slot Spacing - Length
76.2 mm
Overall Wheel Width
51 mm
Mounting Plate Width
102 mm
Outside Slot Spacing - Length
92.075 mm
Mounting Plate Length
114 mm
Inside Slot Spacing - Width
66.675 mm
For Axle Dia.
12 mm
Hub Length
54 mm
Fits Chest Size
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process

Description

Swivel, Plate Caster, Wheel Dia. 203 mm, Wheel Width 51 mm, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
