  11. Swivel Pneumatic Caster, 12 in., 625 lb.
Shop All Plate Casters
Hamilton

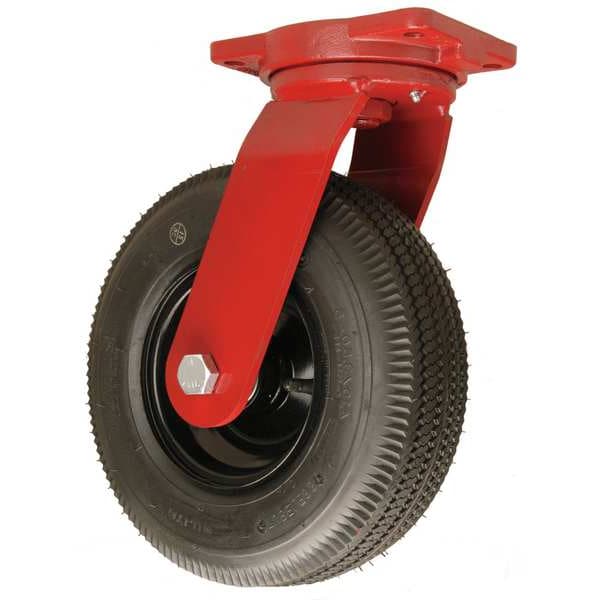

Swivel Pneumatic Caster, 12 in., 625 lb.

product price: $295.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel/Tread Material Pneumatic
  • Load Rating 625 lb
  • Number of Wheels 1
See all product information

Product Information

Dimensions

Overall Height 15-1/2"
Wheel Dia. 12 in
Wheel Width 4 1/8 in
Mounting Bolt Dia. 1/2 in
Tire Rim Dia. 6 in
Plate Size 6-1/8" x 7-1/2"
Hub Width 3-1/4"
Mounting Plate Size 6-1/8 in x 7-1/2 in
Mounting Height 15 1/2 in

Details

Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel/Tread Material Pneumatic
Load Rating 625 lb
Number of Wheels 1
Ply 4
Frame Finish Enamel
Item Plate Caster with Pneumatic Wheels
Frame Material Forged Steel
Non-Marking No
Tread Sawtooth
Caster Raceway Single Ball
Caster Plate Hole Pattern A
Hub Material Steel
Hub Color Black
Inside Bolt Hole Spacing 4-1/8 in x 6-1/8 in
Plate Caster Bolt Hole Pattern A
Outside Bolt Hole Spacing 4-1/8 in x 6-1/8 in
Caster Product Group Swivel Caster
Caster Mounting Type Plate
Caster Wheel Bearings Ball
Tread Color Black
Caster Temp. Range Available Yes
Plate Thickness 1/2"
Hub Type Symmetrical
Caster Temp. Range -30 Degrees to 120 Degrees F
Caster Brake Type No Brake Included
Mounting Plate Bolt Hole Pattern D
Wheel/Tread Material Rubber
Load Rating Range 300 to 999 lb
Swivel Construction Kingpin
Swivel Raceway Type Single Ball
Wheel/Tread Hardness 60 Shore A
Number of Mounting Holes 4
Operating Temperature Range -30 Degrees to 120 Degrees F
Wheel Bearing Type Precision Ball
Wheel/Tread Hardness Rating Soft
Includes Thread Guards No
Caster Frame Material Steel

Description

Plate Caster with Pneumatic Wheels, Load Rating Range 300 to 999 lb, Load Rating 625 lb, Tread Sawtooth, Wheel Dia. 12 in, Wheel Width 4 1/8 in, Inside Bolt Hole Spacing 4-1/8 in x 6-1/8 in, Outside Bolt Hole Spacing 4-1/8 in x 6-1/8 in, Caster Brake Type No Brake Included, Caster Product Group Swivel Caster, Caster Sub-Type Swivel, Operating Temperature Range -30 Degrees to 120 Degrees F, Non-Marking No, Wheel/Tread Material Rubber, Tire Rim Dia. 6 in, Frame Finish Enamel, Tread Color Black
