Blickle Rigid Plate Caster, PU, 6", 1760 lb. BSFE-GTH 150K-16 - main

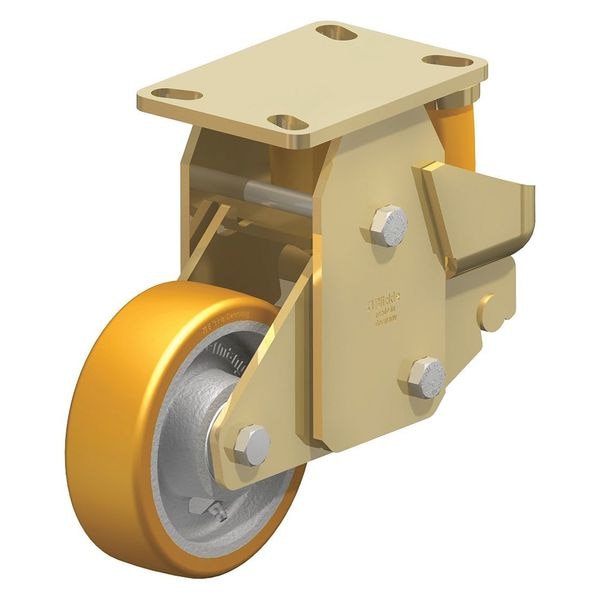

Rigid Plate Caster, PU, 6", 1760 lb.

  • Mfr # BSFE-GTH 150K-16

  • Zoro # G0895820

product price:  $291.99
/ea
Free Shipping & Returns

Key Features

Frame Finish
Zinc Plated, Yellow Passivated
Replacement Wheel
Mfr. No. GTH 150/20K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BSFE-GTH 150K-16
Zoro #
G0895820
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Overall Height
9-1/2 in
Wheel Dia.
6 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Item
Rigid Caster
Frame Finish
Zinc Plated, Yellow Passivated
Replacement Wheel
Mfr. No. GTH 150/20K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Extended Lead
No
Core Color
Gray
Standards
RoHS, ICWM
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Brake Type
No Brake Included
Non-Marking
Yes
Number of Wheels
1
Tread
Standard
Caster Frame Material
Steel
Caster Brake Included
No
Caster Mounting Type
Plate
Load Capacity
610 lb
Tread Color
Light Brown
Load Rating Range
Heavy Duty
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Tread Shape
Standard
ESD Conductive
No
Number of Mounting Holes
4
Wheel Core Material
Cast Iron
Series
BSFE Series
Max. Spring Deflection
1 in
Wheel/Tread Material
Extrathane Polyurethane
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Maximum Compression Force
1100 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Rigid
