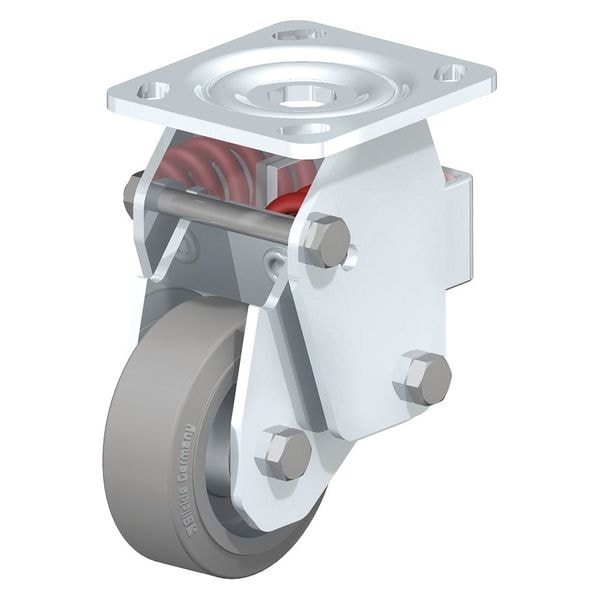

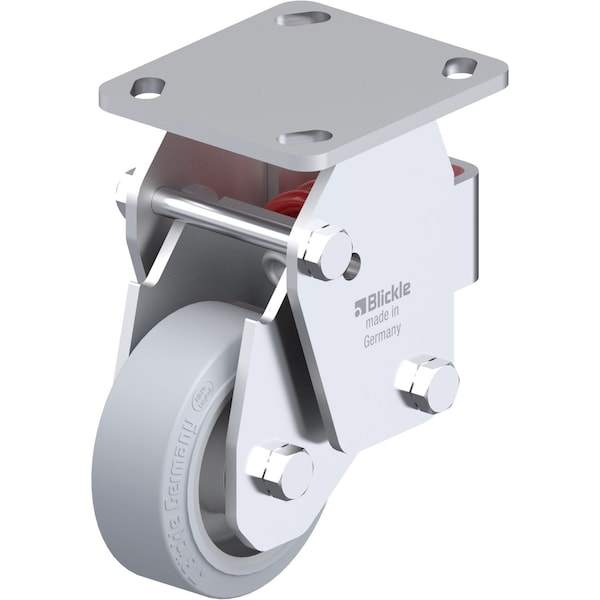

Blickle Rigid Plate Caster, Solid Rbbr, 4", 440 lb. BHF-ALEV 100K-14-SG - main

Rigid Plate Caster, Solid Rbbr, 4", 440 lb.

  • Mfr # BHF-ALEV 100K-14-SG

  • Zoro # G0895181

product price:  $181.99
/ea
Free Shipping & Returns

Key Features

Extended Lead
No
Overall Height
6-7/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Caster Brake Included
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BHF-ALEV 100K-14-SG
Zoro #
G0895181
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
6-7/8 in
Wheel Dia.
4 in
Wheel Width
1-9/16 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.217 in

Details

Item
Rigid Caster
Extended Lead
No
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Caster Brake Included
No
Caster Brake Type
No Brake Included
Frame Finish
Zinc Plated
Load Capacity
260 lb
Caster Mounting Type
Plate
Caster Frame Material
Steel
Non-Marking
Yes
Replacement Wheel
Mfr. No. ALEV 100/15K-SG
Caster Sub-Type
Rigid
Tread
Standard
Tread Color
Gray
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM
Core Color
Silver
Load Rating Range
Medium Duty
Number of Mounting Holes
4
ESD Conductive
No
Includes Thread Guards
No
Tread Shape
Standard
Series
BHF Series
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel Core Material
Aluminum
System of Measurement
Inch
Max. Spring Deflection
3/4 in
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Maximum Compression Force
440 lb
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Rigid
