  6. Rigid Plate Caster, Solid Rbbr, 5", 550 lb.

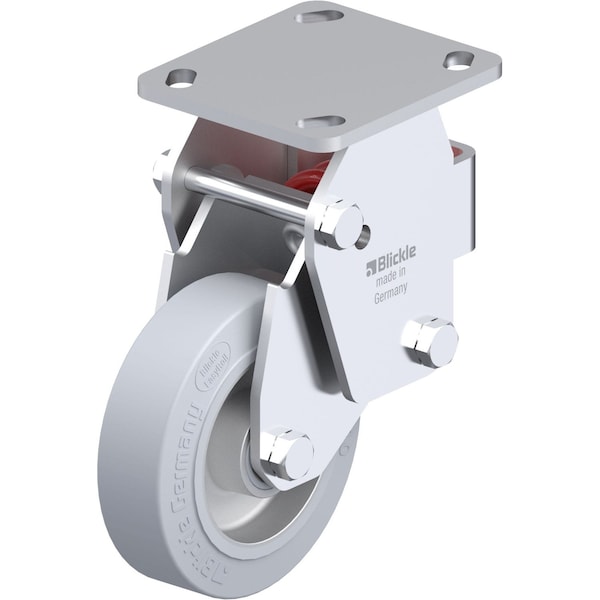

Blickle Rigid Plate Caster, Solid Rbbr, 5", 550 lb. BHF-ALEV 125K-14-SG - main

Rigid Plate Caster, Solid Rbbr, 5", 550 lb.

  • Mfr # BHF-ALEV 125K-14-SG

  • Zoro # G0895209

product price:  $183.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BHF-ALEV 125K-14-SG
Zoro #
G0895209
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.217 in
Mounting Bolt Dia.
3/8 in
Wheel Width
1-9/16 in
Overall Height
7-7/8 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Extended Lead
No
Caster Brake Included
No
Replacement Wheel
Mfr. No. ALEV 125/15K-SG
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM
Tread Color
Gray
Load Capacity
300 lb
Tread
Standard
Frame Finish
Zinc Plated
ESD Conductive
No
Max. Spring Deflection
13/16 in
Wheel Core Material
Aluminum
Includes Thread Guards
No
Series
BHF Series
Load Rating Range
Medium Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Maximum Compression Force
530 lb
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Rigid
