Shop BLICKLE

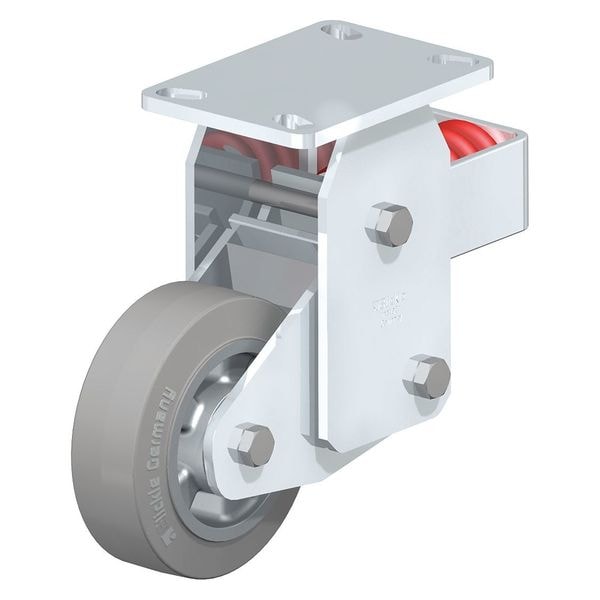

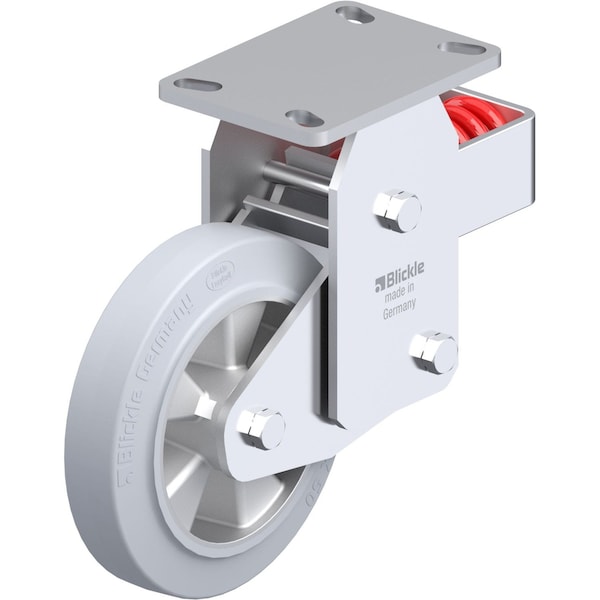

Rigid Plate Caster, Solid Rbr, 8", 1100 lb.

  • Mfr # BHF-ALEV 200K-16-SG

  • Zoro # G0895093

product price:
$
317.99
/ea
Free Shipping & Returns

Key Features

Non-Marking
Yes
Replacement Wheel
Mfr. No. ALEV 200/20K-SG
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Sub-Type
Rigid
Load Capacity
500 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BHF-ALEV 200K-16-SG
Zoro #
G0895093
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Overall Height
10-7/16 in
Wheel Width
8 in
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Item
Rigid
Non-Marking
Yes
Replacement Wheel
Mfr. No. ALEV 200/20K-SG
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Sub-Type
Rigid
Load Capacity
500 lb
Extended Lead
No
Application
Retail, Industrial, Commercial
Tread Color
Gray
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Frame Material
Steel
Core Color
Silver
Standards
RoHS, ICWM
Number of Wheels
1
Caster Mounting Type
Plate
Caster Brake Type
No Brake Included
Caster Brake Included
No
Frame Finish
Zinc Plated
Tread
Standard
Max. Spring Deflection
1 in
Wheel Core Material
Aluminum
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Number of Mounting Holes
4
Tread Shape
Standard
System of Measurement
Inch
Load Rating Range
Medium Duty
Series
BHF Series
ESD Conductive
No
Includes Thread Guards
No
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Maximum Compression Force
880 lb
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description
