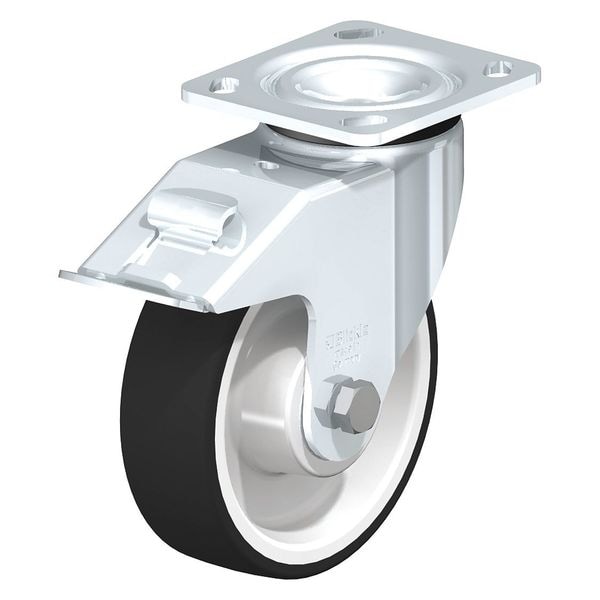

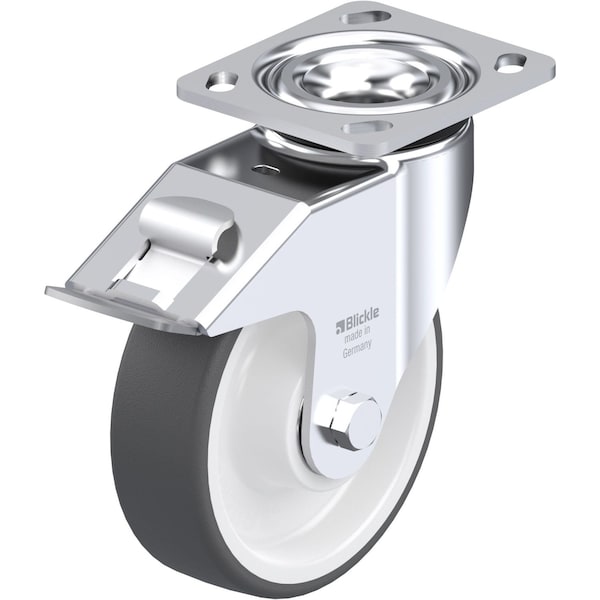

Swivel Plate Caster, PU, 6", Brake

Name: Swivel Plate Caster, PU, 6", Brake
Brand: Blickle
SKU: G0893580
Price: 99.15 USD
Availability: InStock

99.15

/ea

Wheel Width

1-3/4in

Caster Brake Included

Yes

Caster Stem Type

No Stem/Plate Included

Stem Dia.

No Stem

Wheel Dia.

6in

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Caster Brake Included: Yes
Caster Stem Type: No Stem/Plate Included
Number of Wheels: 1
Item: Swivel With Brake
Load Rating: 1,100 lb
Caster Sub-Type: Swivel
Inside Bolt Hole Spacing: 3 in x 3 in
Caster Brake Type: Stop Fix Brake (Total Lock)
Core Color: White
Tread Color: Gray
Frame Finish: Zinc Plated
Tread: Standard
Standards: RoHS, ICWM
Outside Bolt Hole Spacing: 2-5/8 in x 3-5/8 in
Includes: Stop-Fix Total-Lock Brake
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel: Mfr. No. POTH 150/20K
Caster Mounting Type: Plate
System of Measurement: Inch
Non-Marking: Yes
Extended Lead: No
Caster Frame Material: Steel
ESD Conductive: No
Wheel Core Material: Nylon
Load Capacity: 1100 lb
Number of Mounting Holes: 4
Tread Shape: Standard
Resistant To: Very High Chemical Resistance To Many Aggressive Substances
Accessories: Optional: RI-04.14 (Directional Lock)
Load Rating Range: Heavy-Duty
Includes Thread Guards: No
Series: LEH Series
Swivel Raceway Type: Double Ball
Wheel/Tread Material: Nylon/Thermoplastic Polyurethane
Wheel Bearing Type: Precision Ball
Wheel Hardness Rating: 94 Shore A
Operating Temperature Range: -15 Degrees To 160 Degrees F

Swivel With Brake
