  10. /
  11. Swivel Plate Caster, Gray Nyln, 5", 770 lb.
Shop All Plate Casters
Blickle

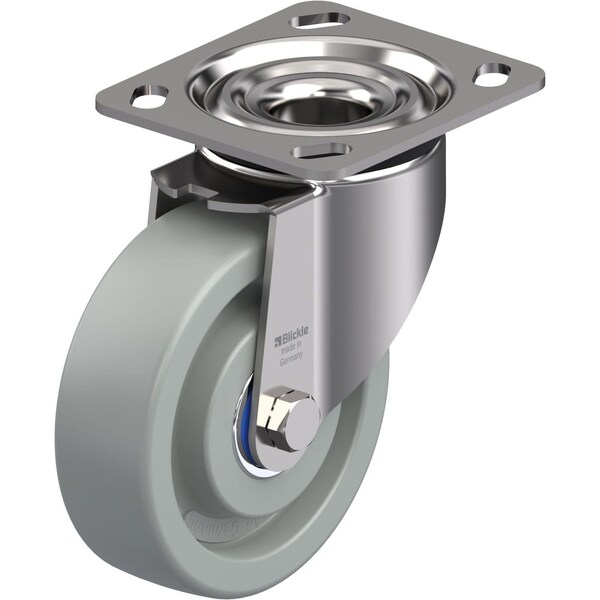

Swivel Plate Caster, Gray Nyln, 5", 770 lb.

product price: $92.29
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel/Tread Material Heavy Duty Polyurethane
  • Load Rating 770 lb.
See all product information

Product Information

Dimensions

Overall Height 6-1/8 in
Wheel Dia. 5 in
Wheel Width 1-9/16 in
Stem Dia. No Stem
Mounting Bolt Dia. 3/8 in
Swivel Radius 4-3/8 in
Caster Plate Size 4 in x 4-1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Medium Duty
Caster Sub-Type Swivel
Caster Wheel/Tread Material Heavy Duty Polyurethane
Load Rating 770 lb.
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Item Swivel Plate Caster
Non-Marking Yes
Core Color Gray
Inside Bolt Hole Spacing 3 in x 3 in
Caster Product Group Swivel Caster
Tread Color Gray
Caster Wheel Bearings Precision Ball
Caster Raceway Double Ball
Tread Standard
Standards RoHS, ICWM
Replacement Wheel Mfr. No. SPOG 125/15XK
Application Retail, Industrial, Commercial, Corrosion Resistance
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Frame Finish Stainless Steel
Caster Temp. Range -15 Degrees To 175 Degrees F
Caster Mounting Type Plate
System of Measurement Inch
Extended Lead No
Caster Swivel Lock Type No Lock Included
Caster Frame Material Stainless Steel
Caster Plate Thickness 0.118 in
Load Capacity 770 lb
Wheel Core Material Nylon
Tread Shape Standard
ESD Conductive No
Swivel Raceway Type Double Ball
Series LKX Series
Caster Break Type No Brake Included
Wheel/Tread Hardness 70 Shore D
Includes Thread Guards No
Resistant To High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes 4

Description

Swivel
