Shop BLICKLE

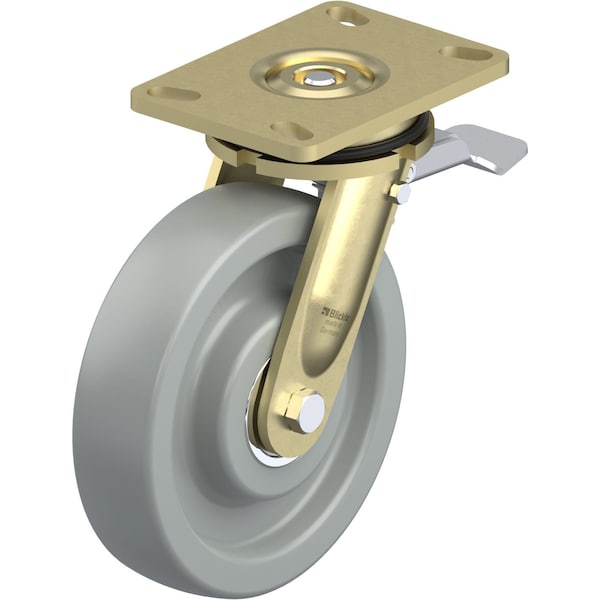

Swivel Plate Caster, Gray Nylon, 8", Brake, Caster Load Rating Range: Heavy-Duty

  • Mfr # LS-SPOG 200K-16-ST
  • Zoro # G0895312
product price:
$
341.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Included
Yes
Caster Sub-Type
Swivel
Overall Height
9.65in
Wheel Width
2in
Wheel Dia.
8in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-SPOG 200K-16-ST
Zoro #
G0895312
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
9.65in
Wheel Width
2in
Wheel Dia.
8in
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-3/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Caster Brake Included
Yes
Caster Sub-Type
Swivel
Number of Wheels
1
Item
Swivel With Brake
Caster Stem Type
No Stem/Plate Included
Load Rating
2,750 lb
Standards
RoHS, ICWM
Non-Marking
Yes
Tread
Standard
Caster Brake Type
Stop Top Brake (Total Lock)
Caster Mounting Type
Plate
Replacement Wheel
Mfr. No. SPOG 200/25K
Core Color
Gray
Includes
Stop-Top Total-Lock Brake
Frame Finish
Zinc Plated, Yellow Passivated
Application
Retail, Industrial, Commercial, Corrosion Resistance
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Tread Color
Gray
System of Measurement
Inch
Caster Frame Material
Steel
Extended Lead
No
Includes Thread Guards
No
ESD Conductive
No
Tread Shape
Standard
Load Rating Range
Heavy-Duty
Series
LS Series
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Load Capacity
2750 lb
Wheel Core Material
Nylon
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-LS-16 (Directional Lock)
Number of Mounting Holes
4
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Nylon
Wheel Hardness Rating
70 Shore D
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
