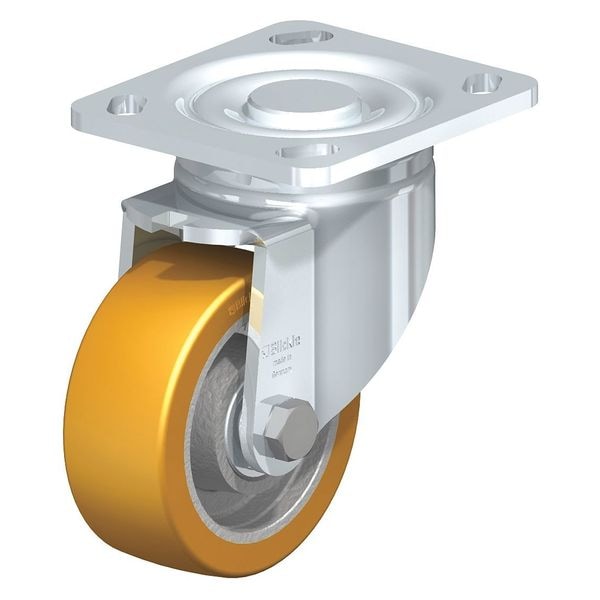

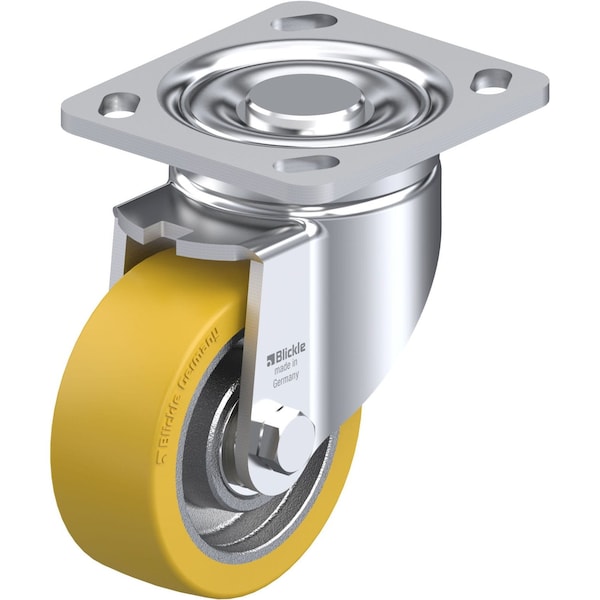

Blickle Swivel Plate Caster, PU, 4", 880 lb. LH-GTH 100K-14 - main

Swivel Plate Caster, PU, 4", 880 lb.

  • Mfr # LH-GTH 100K-14

  • Zoro # G0894420

product price:  $101.99
/ea
Free Shipping & Returns

Key Features

Number of Wheels
1
Load Rating
880 lb
Wheel Dia.
4in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LH-GTH 100K-14
Zoro #
G0894420
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4in
Wheel Width
1-9/16in
Overall Height
5.51in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in

Details

Number of Wheels
1
Load Rating
880 lb
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Item
Swivel Caster
Caster Sub-Type
Swivel
Core Color
Gray
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement
Inch
Tread
Standard
Caster Mounting Type
Plate
Frame Finish
Zinc Plated
Caster Brake Type
No Brake Included
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Replacement Wheel
Mfr. No. GTH 100/15K
Tread Color
Light Brown
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Caster Frame Material
Steel
Extended Lead
No
Swivel Raceway Type
Double Ball
Accessories
Optional: RI-04.14 (Directional Lock)
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Core Material
Cast Iron
Load Rating Range
Heavy-Duty
ESD Conductive
No
Includes Thread Guards
No
Series
LH Series
Load Capacity
880 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
92 Shore A
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
