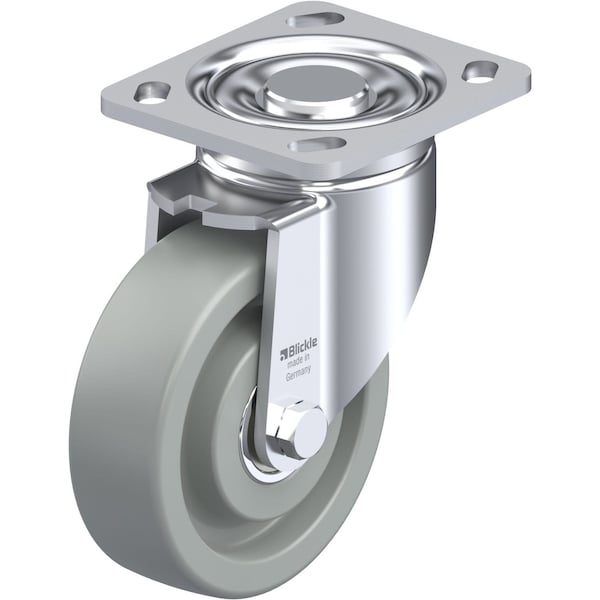

Blickle Swivel Plate Caster, Gry Nyln, 5", 1540 lb. LH-SPOG 125K-14 - main

Swivel Plate Caster, Gry Nyln, 5", 1540 lb.

  • Mfr # LH-SPOG 125K-14

  • Zoro # G0894253

product price:  $83.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia.
5in
Caster Brake Included
No
Wheel Width
1-9/16in
Number of Wheels
1
Overall Height
6-1/2in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-SPOG 125K-14
Zoro #
G0894253
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5in
Wheel Width
1-9/16in
Overall Height
6-1/2in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-1/4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in

Details

Caster Brake Included
No
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster
Caster Sub-Type
Swivel
Load Rating
1540 lb.
Caster Mounting Type
Plate
Non-Marking
Yes
System of Measurement
Inch
Inside Bolt Hole Spacing
3 in x 3 in
Tread Color
Gray
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread
Standard
Caster Brake Type
No Brake Included
Replacement Wheel
Mfr. No. SPOG 125/15K
Frame Finish
Zinc Plated
Core Color
Gray
Application
Retail, Industrial, Commercial, Corrosion Resistance
Standards
RoHS, ICWM
Extended Lead
No
Caster Frame Material
Steel
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy-Duty
Series
LH Series
Number of Mounting Holes
4
ESD Conductive
No
Accessories
Optional: RI-04.14 (Directional Lock)
Load Capacity
1540 lb
Includes Thread Guards
No
Tread Shape
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Nylon
Wheel/Tread Material
Nylon
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
70 Shore D
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
