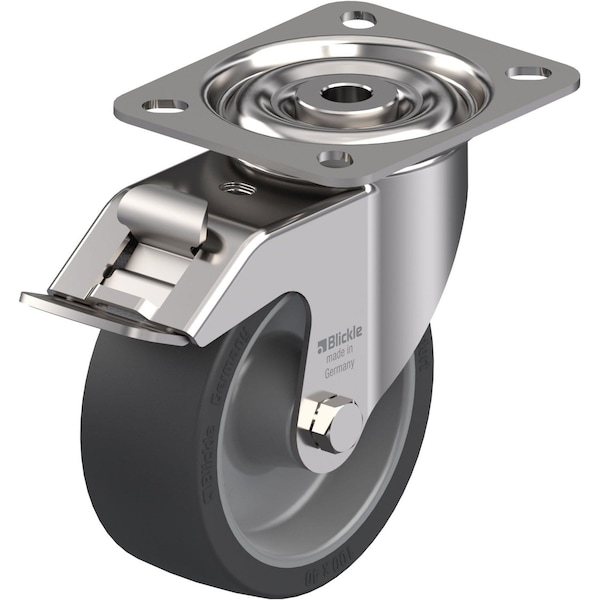

Blickle Swivel Plate Cstr, Silicon, 4", 220 lb., Brk LIX-POSI 100G-FI-OF-XAT - main

Swivel Plate Cstr, Silicon, 4", 220 lb., Brk

  • Mfr # LIX-POSI 100G-FI-OF-XAT

  • Zoro # G0896301

product price:  $146.99
/ea
Free Shipping & Returns

Key Features

Load Rating
220 lb
Caster Stem Type
No Stem/Plate Included
Overall Height
4.92in
Caster Sub-Type
Swivel
Caster Brake Included
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LIX-POSI 100G-FI-OF-XAT
Zoro #
G0896301
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
4.92in
Stem Dia.
No Stem
Wheel Dia.
4in
Wheel Width
1-9/16in
Mounting Bolt Dia.
M8
Swivel Radius
86 mm
Mounting Plate Thickness
2.5 mm
Mounting Plate Size
85 mm x 100 mm

Details

Load Rating
220 lb
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Number of Wheels
1
Item
Swivel Caster With Brake
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. POSI 100/12G
Includes
Stop-Fix Total-Lock Brake, Teflon Coated Stainless Steel Spanner
Non-Marking
Yes
Inside Bolt Hole Spacing
60 mm x 80 mm
Tread Color
Black
Caster Mounting Type
Plate
Tread
Standard
Core Color
Gray
System of Measurement
Metric
Frame Finish
Stainless Steel
Outside Bolt Hole Spacing
60 mm x 80 mm
Application
High Temperature, Food Industry / Bakeries
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Frame Material
Stainless Steel
Extended Lead
No
Series
LIX Series
Wheel Core Material
Heat Resistant Nylon
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Load Rating Range
Medium Duty
Load Capacity
100 kg
Number of Mounting Holes
4
Tread Shape
Standard
ESD Conductive
No
Resistant To
High Temperature, Very High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Material
Heat Resistant TempLine Silicone Rubber
Wheel Hardness Rating
75 Shore A
Wheel Bearing Type
Plain
Operating Temperature Range
-25 Degrees To 250 Degrees C

Description

Swivel With Brake
