Shop BLICKLE

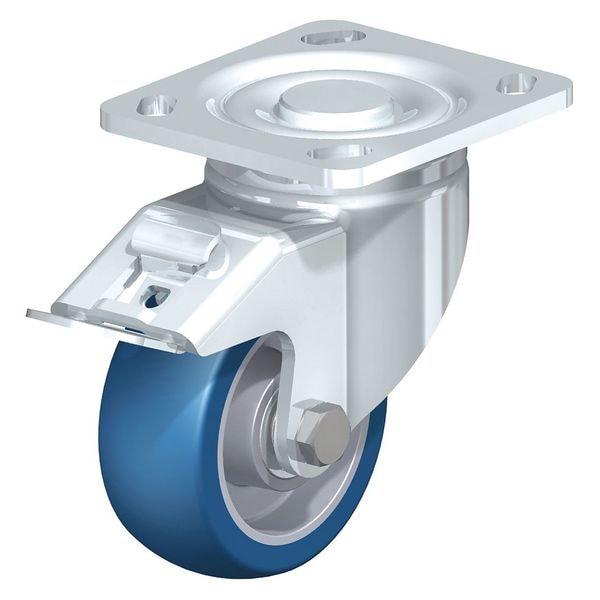

Swivel Plate Caster, PU, 3-1/8", Brake

  • Mfr # LH-ALBS 82K-14-FI
  • Zoro # G0894953
product price:
$
137.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Wheel Width
1-9/16in
Wheel Dia.
3-1/8in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALBS 82K-14-FI
Zoro #
G0894953
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1-9/16in
Wheel Dia.
3-1/8in
Overall Height
4.72in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-5/16 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Item
Plate Caster
Load Rating
505 lb
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
System of Measurement
Inch
Inside Bolt Hole Spacing
3 in x 3 in
Tread
Standard
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
RoHS, ICWM
Caster Mounting Type
Plate
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread Color
Blue
Caster Brake Type
Stop Fix Brake (Total Lock)
Includes
Stop-Fix Total-Lock Brake
Core Color
Silver
Non-Marking
Yes
Replacement Wheel
Mfr. No. ALBS 82/15K
Extended Lead
No
Caster Frame Material
Steel
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
500 lb
Accessories
Optional: RI-04.14 (Directional Lock)
Series
LH Series
Load Rating Range
Heavy-Duty
Wheel Core Material
Aluminum
ESD Conductive
No
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel Hardness Rating
75 Shore A
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F
Load Capacity - Maximum
990 lb

Description

Plate Caster
